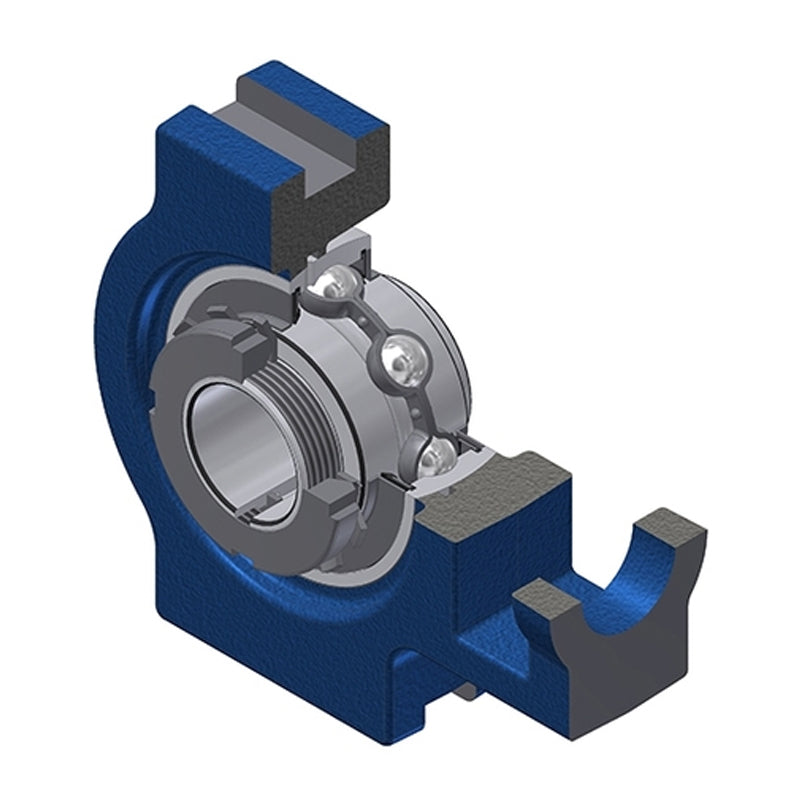

SNR UKT317H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 75mm Shaft - Allow 2-3 Days
SNR UKT317H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 75mm Shaft - Allow 2-3 Days
Regular price
Rs. 63,842.96
Regular price
Sale price
Rs. 63,842.96
Taxes included.
In stock
Price Break
5+
Rs. 63,204.53
10+
Rs. 60,650.81
20+
Rs. 59,373.95
50+
Rs. 57,458.66
100+
Rs. 56,181.80
500+
Rs. 52,989.66
1000+
Rs. 44,690.07
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 102mm |
| A1 | 32mm |
| A2 | 64mm |
| B1 | 82mm |
| d1 | 110mm |
| H | 240mm |
| H1 | 214mm |
| H2 | 152mm |
| L | 298mm |
| L1 | 183mm |
| L2 | 32mm |
| L3 | 170mm |
| N | 53mm |
| N1 | 42mm |
| N2 | 98mm |
| s1 | 48mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 132.6 kN |
| Static load C0 | 96.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2317 |
| Mass | 18.61 kg |
