SKU: UKT312H-SNR

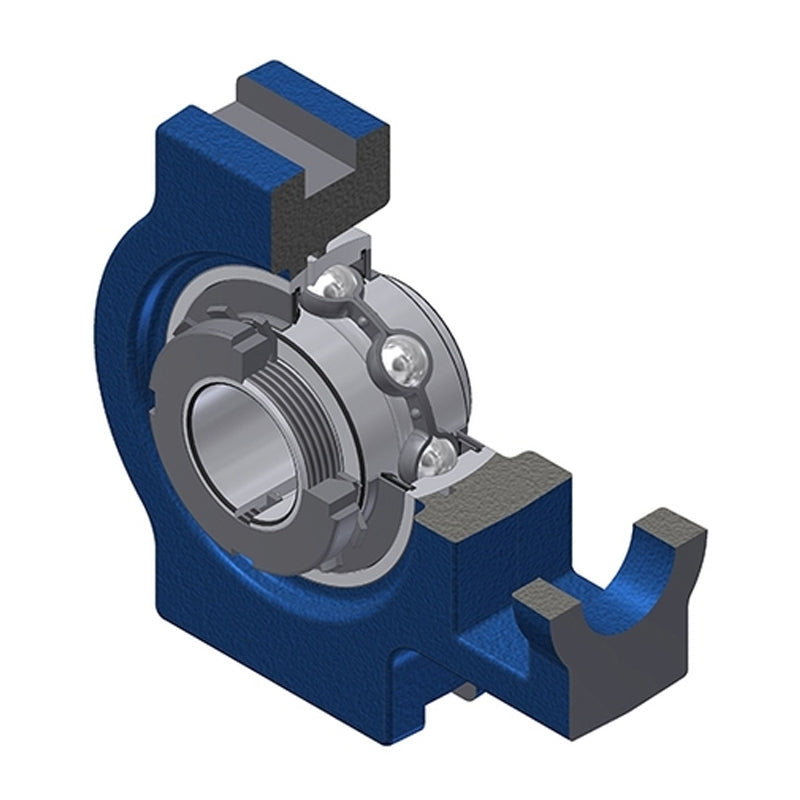

SNR UKT312H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
SNR UKT312H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
Regular price
Rs. 28,370.24
Regular price
Sale price
Rs. 28,370.24
Taxes included.
In stock
Price Break
5+
Rs. 28,086.54
10+
Rs. 26,951.73
20+
Rs. 26,384.32
50+
Rs. 25,533.22
100+
Rs. 24,965.81
500+
Rs. 23,547.30
1000+
Rs. 19,859.17
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 71mm |
| A1 | 22mm |
| A2 | 46mm |
| B1 | 62mm |
| d1 | 80mm |
| H | 178mm |
| H1 | 160mm |
| H2 | 113mm |
| L | 220mm |
| L1 | 135mm |
| L2 | 25mm |
| L3 | 123mm |
| N | 41mm |
| N1 | 31mm |
| N2 | 71mm |
| s1 | 36.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2312 |
| Mass | 7.57 kg |
