SKU: UKT305H-SNR

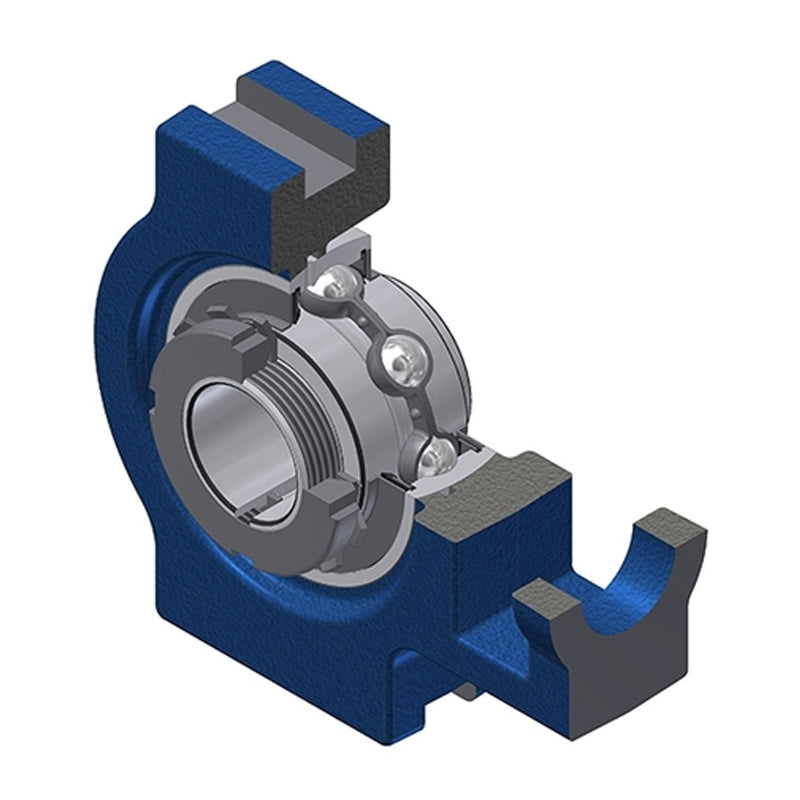

SNR UKT305H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
SNR UKT305H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Regular price
Rs. 8,505.57
Regular price
Sale price
Rs. 8,505.57
Taxes included.
In stock
Price Break
5+
Rs. 8,420.51
10+
Rs. 8,080.29
20+
Rs. 7,910.18
50+
Rs. 7,655.01
100+
Rs. 7,484.90
500+
Rs. 7,059.62
1000+
Rs. 5,953.90
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 36mm |
| A1 | 12mm |
| A2 | 26mm |
| B1 | 35mm |
| d1 | 38mm |
| H | 89mm |
| H1 | 80mm |
| H2 | 62mm |
| L | 122mm |
| L1 | 76mm |
| L2 | 14mm |
| L3 | 65mm |
| N | 26mm |
| N1 | 16mm |
| N2 | 36mm |
| s1 | 21.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 22.36 kN |
| Static load C0 | 11.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2305 |
| Mass | 1.26 kg |
