SKU: UKT213HN-SNR

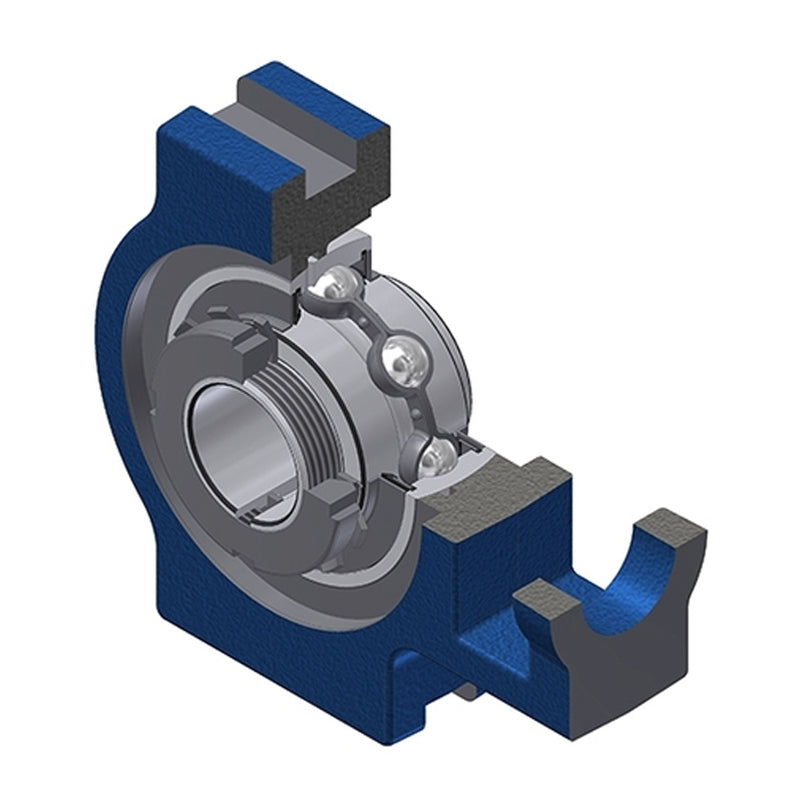

SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
Regular price
Rs. 15,014.04
Regular price
Sale price
Rs. 15,014.04
Taxes included.
In stock
Price Break
10+
Rs. 13,362.50
19+
Rs. 12,611.79
29+
Rs. 12,461.65
39+
Rs. 12,311.51
49+
Rs. 12,161.37
74+
Rs. 12,011.23
99+
Rs. 11,260.53
199+
Rs. 11,110.39
249+
Rs. 10,960.25
499+
Rs. 10,810.11
999+
Rs. 10,509.83
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 70mm |
| A1 | 26mm |
| A2 | 44mm |
| B1 | 65mm |
| d1 | 85mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| L | 224mm |
| L1 | 137mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| s1 | 32mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2313 |
| Mass | 6.65 kg |
