SKU: UKT211HCC-SNR

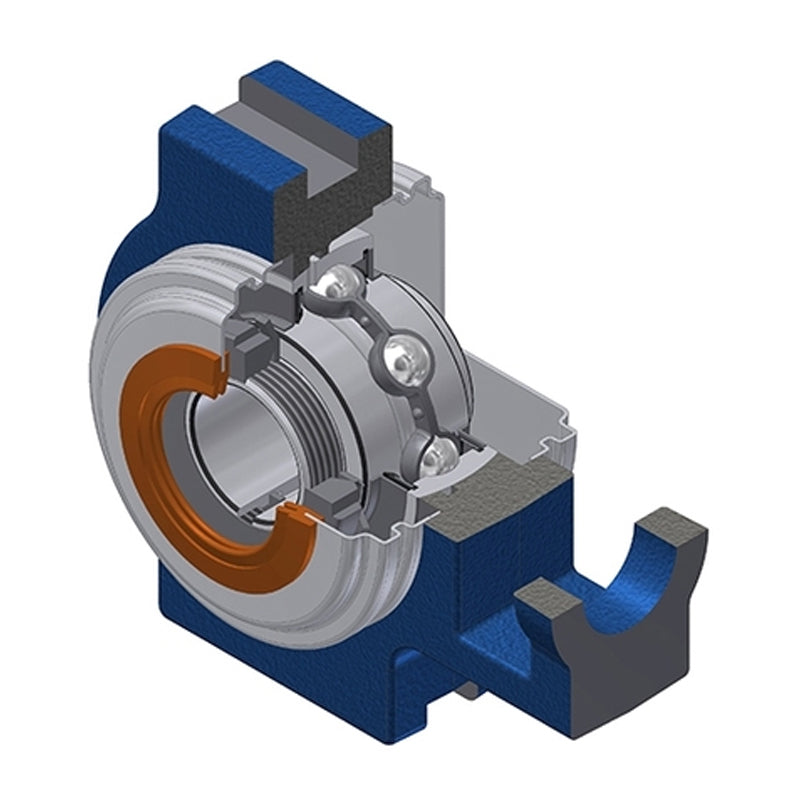

SNR UKT211HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Closed Version - Allow 2-3 Days
SNR UKT211HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Closed Version - Allow 2-3 Days
Regular price
Rs. 17,017.53
Regular price
Sale price
Rs. 17,017.53
Taxes included.
In stock
Price Break
5+
Rs. 16,847.35
10+
Rs. 16,166.65
20+
Rs. 15,826.30
50+
Rs. 15,315.78
100+
Rs. 14,975.43
500+
Rs. 14,124.55
1000+
Rs. 11,912.27
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKT
Technical
Technical

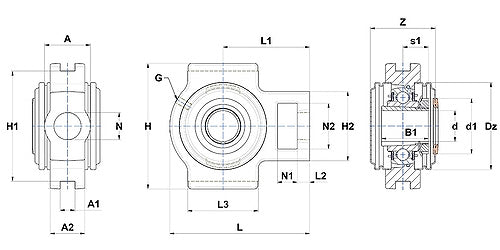

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 38mm |
| B1 | 59mm |
| d1 | 75mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 35mm |
| N1 | 25mm |
| N2 | 64mm |
| Dz | 110mm |
| Z | 76.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2311 |
| Mass | 4.158 kg |
