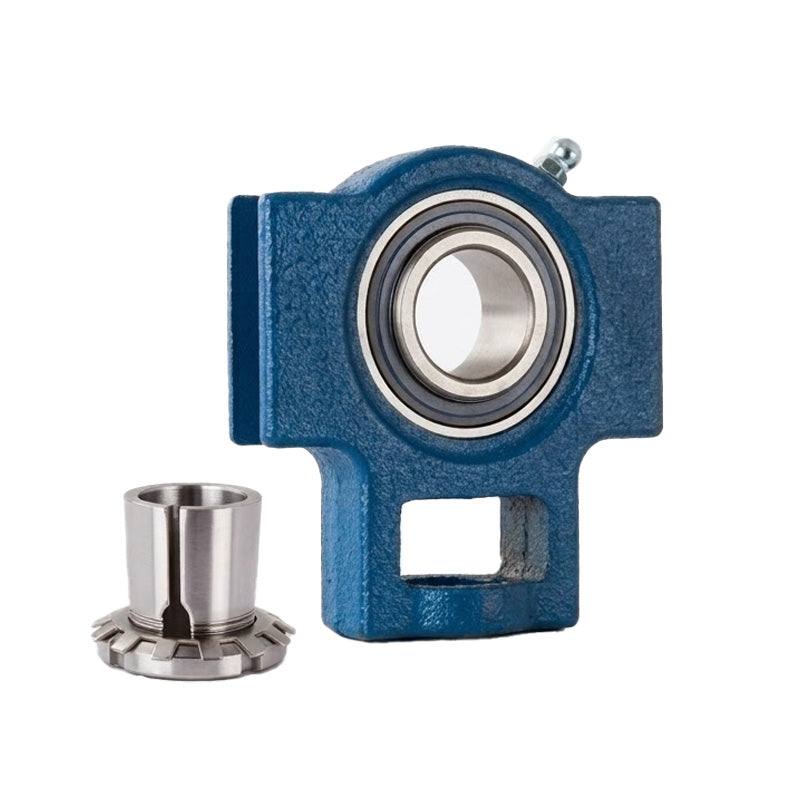

UKT211/HA2311 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-15/16 inch Shaft
UKT211/HA2311 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-15/16 inch Shaft
Regular price
Rs. 10,807.34
Regular price
Sale price
Rs. 10,807.34
Taxes included.
In stock
Price Break
10+
Rs. 9,618.53
19+
Rs. 9,078.17
29+
Rs. 8,970.09
39+
Rs. 8,862.02
49+
Rs. 8,753.95
74+
Rs. 8,645.87
99+
Rs. 8,105.51
199+
Rs. 7,997.43
249+
Rs. 7,889.36
499+
Rs. 7,781.28
999+
Rs. 7,565.14
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UKT
Technical
Technical

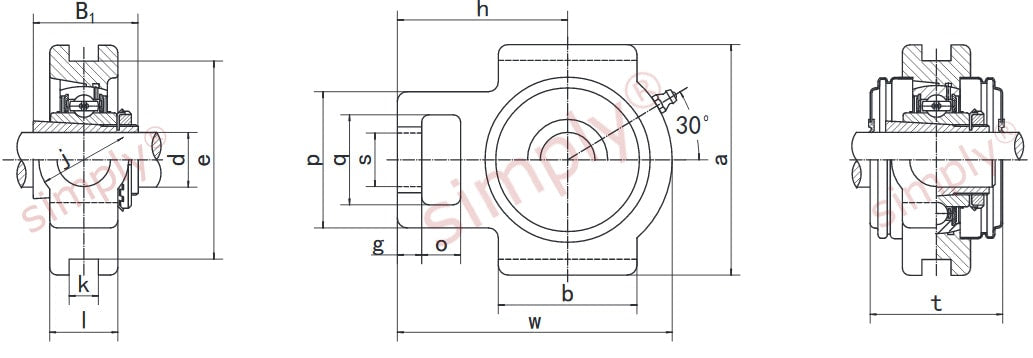

| d | 1-15/16 inch |
|---|---|
| o | 63/64 inch |
| g | 3/4 inch |
| p | 4-1/64 inch |
| q | 2-1/32 inch |
| s | 1-3/8 inch |
| b | 3-3/4 inch |
| k | 55/64 inch |
| e | 5-1/8 inch |
| a | 5-3/4 inch |
| w | 6-47/64 inch |
| j | 2-33/64 inch |
| l | 1-1/2 inch |
| h | 4-11/64 inch |
| t | 3 inch |
| B1 | 2.323 inch |
| Bearing no | UK211;HA2311 |
| Housing no | T211 |
| Weight | 4.26 kg |
