SKU: UKT210HN-SNR

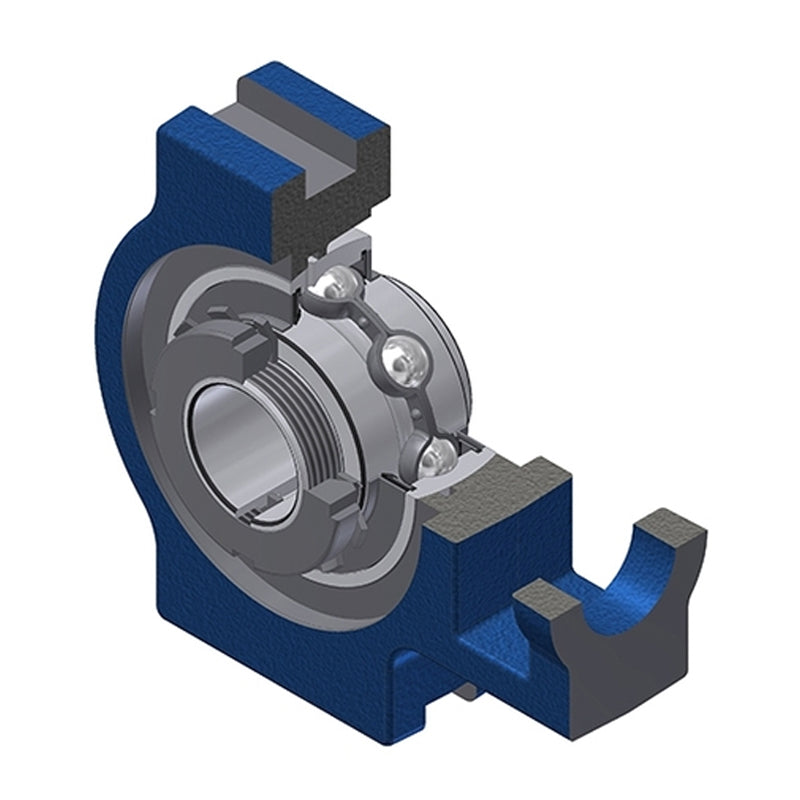

SNR UKT210HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKT210HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
Rs. 11,350.14
Regular price
Sale price
Rs. 11,350.14
Taxes included.
In stock
Price Break
5+
Rs. 11,236.64
10+
Rs. 10,782.63
20+
Rs. 10,555.63
50+
Rs. 10,215.13
100+
Rs. 9,988.12
500+
Rs. 9,420.62
1000+
Rs. 7,945.10
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 37mm |
| B1 | 55mm |
| d1 | 70mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| s1 | 27.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2310 |
| Mass | 2.53 kg |
