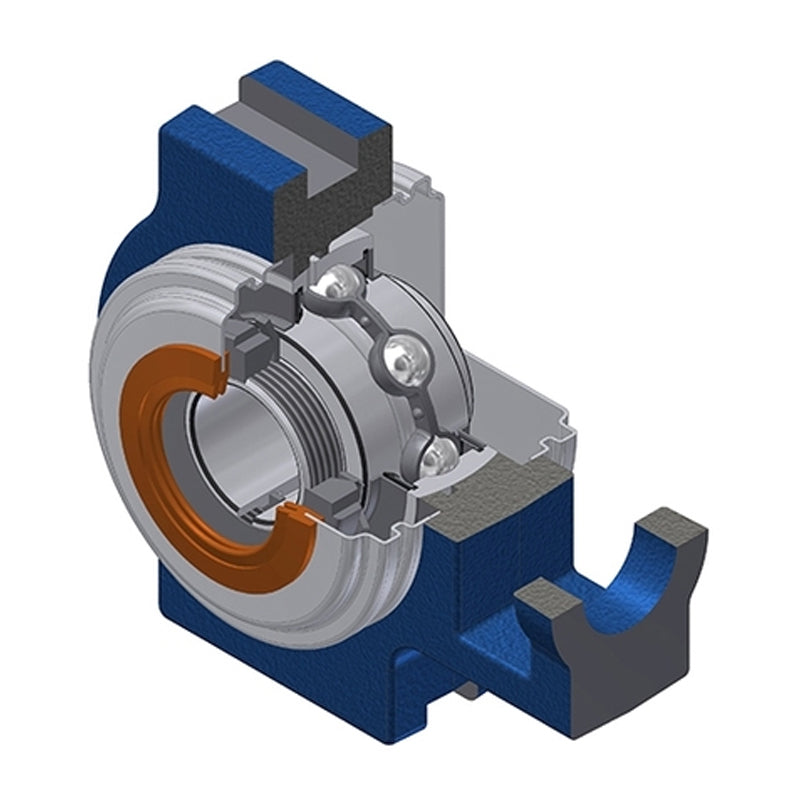

• SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
1 1

SKU: UKT210HCC-SNR

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
Rs. 9,137.98
Rs. 9,137.98
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,132.80
19+ Rs. 7,675.90
29+ Rs. 7,584.52
39+ Rs. 7,493.14
49+ Rs. 7,401.76
74+ Rs. 7,310.38
99+ Rs. 6,853.49
199+ Rs. 6,762.11
249+ Rs. 6,670.73
499+ Rs. 6,579.35
999+ Rs. 6,396.59
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor

Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKT
Technical
--- Dimensions
Shaft diameter d 45mm
A 49mm
A1 16mm
A2 37mm
B1 55mm
d1 70mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
Dz 100mm
Z 74.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 2.752 kg
