SKU: UKT207H-SNR

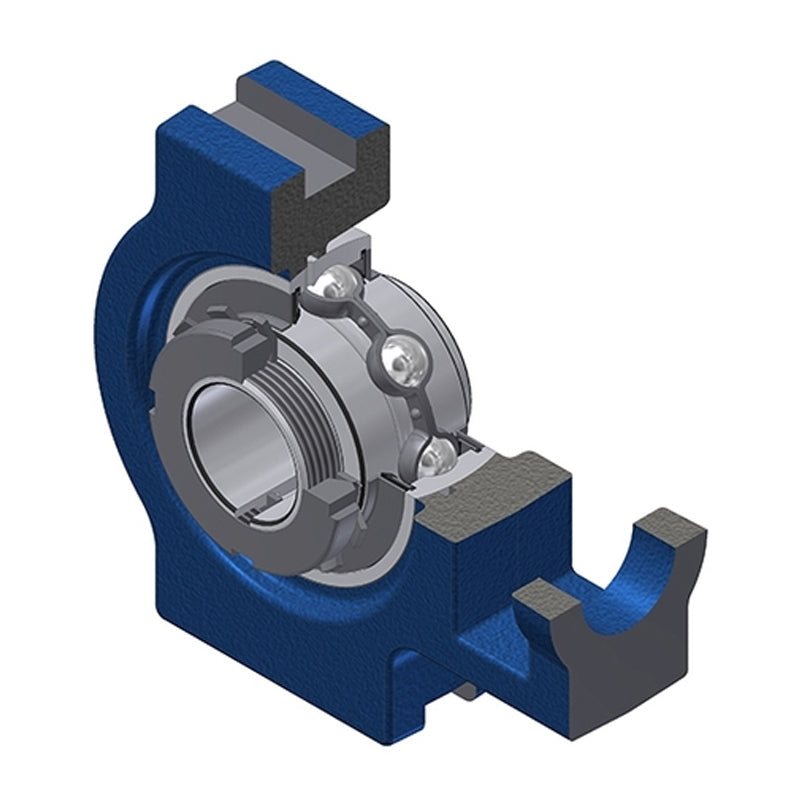

SNR UKT207H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
SNR UKT207H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price
Rs. 7,093.52
Regular price
Sale price
Rs. 7,093.52
Taxes included.
In stock
Price Break
5+
Rs. 7,022.58
10+
Rs. 6,738.84
20+
Rs. 6,596.97
50+
Rs. 6,384.17
100+
Rs. 6,242.30
500+
Rs. 5,887.62
1000+
Rs. 4,965.46
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B1 | 43mm |
| d1 | 52mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| s1 | 22.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2307 |
| Mass | 1.64 kg |
