SKU: UKT205H-SNR

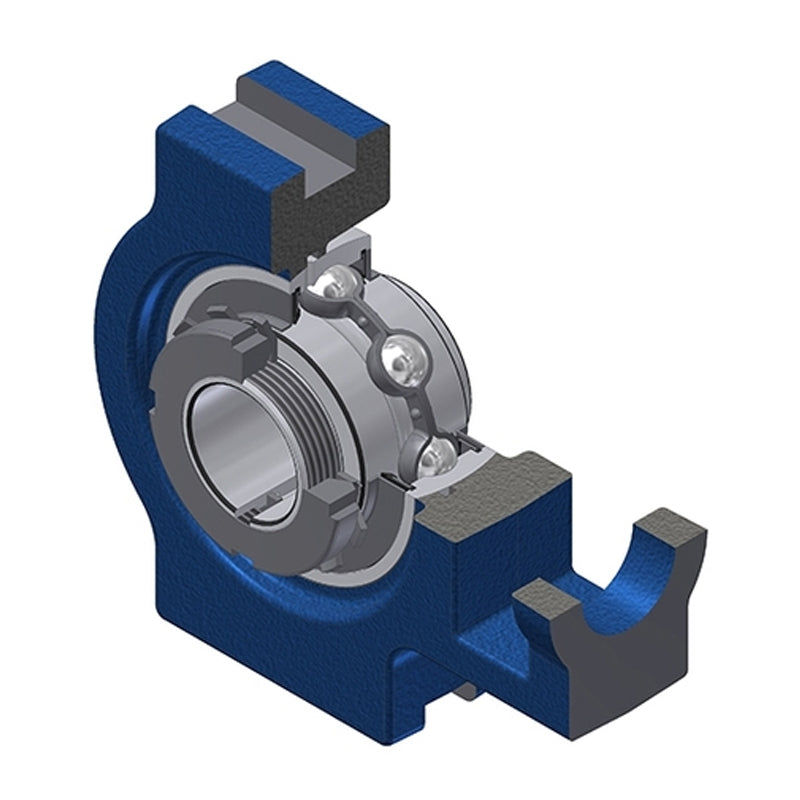

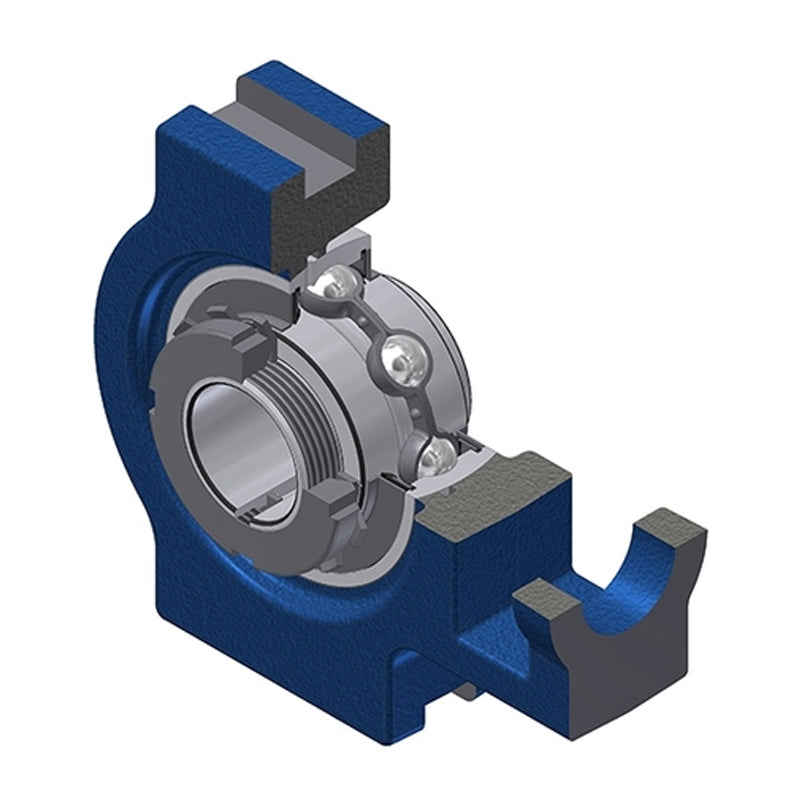

SNR UKT205H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
SNR UKT205H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Regular price
Rs. 5,104.11
Regular price
Sale price
Rs. 5,104.11
Taxes included.
In stock
Price Break
5+
Rs. 5,053.07
10+
Rs. 4,848.90
20+
Rs. 4,746.82
50+
Rs. 4,593.70
100+
Rs. 4,491.62
500+
Rs. 4,236.41
1000+
Rs. 3,572.88
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKT
Technical
Technical

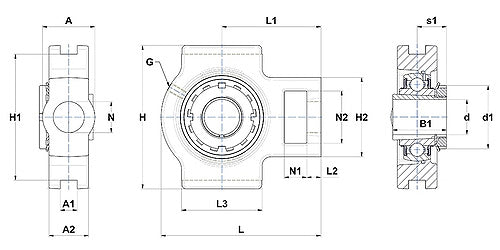

| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 24mm |
| B1 | 35mm |
| d1 | 38mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| s1 | 18.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2305 |
| Mass | 0.84 kg |
