SKU: UKPE213HCC-SNR

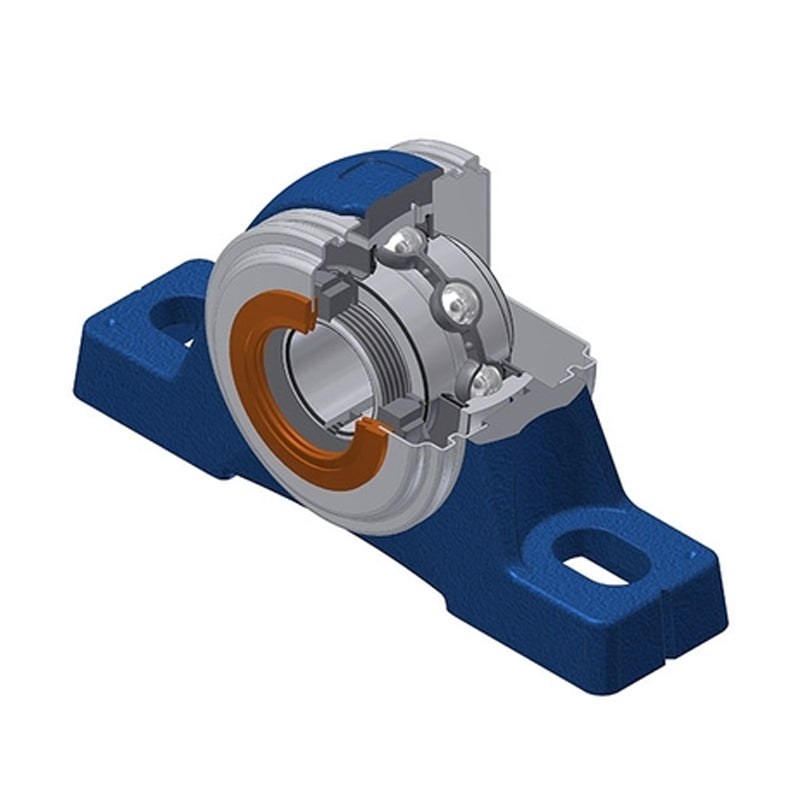

SNR UKPE213HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 60mm Shaft - Allow 2-3 Days
SNR UKPE213HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 60mm Shaft - Allow 2-3 Days
Regular price
Rs. 25,526.94
Regular price
Sale price
Rs. 25,526.94
Taxes included.
In stock
Price Break
5+
Rs. 25,271.67
10+
Rs. 24,250.59
20+
Rs. 23,740.05
50+
Rs. 22,974.25
100+
Rs. 22,463.71
500+
Rs. 21,187.36
1000+
Rs. 17,868.86
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UKPE
- Bolt Hole Centres:
- 203mm
Technical
Technical

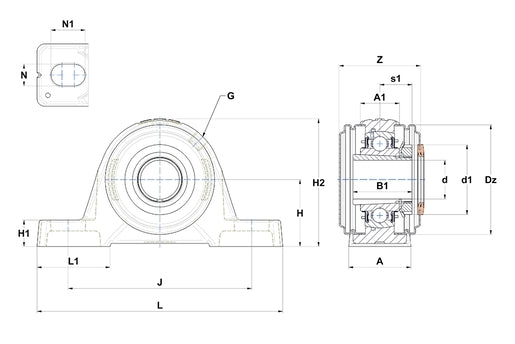

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 65mm |
| A1 | 44mm |
| B | 36mm |
| d1 | 85mm |
| H | 79.4mm |
| H1 | 27.5mm |
| H2 | 156mm |
| J | 203mm |
| L | 260mm |
| L1 | 77mm |
| N | 22mm |
| N1 | 28mm |
| Dz | 132mm |
| Z | 92.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2313 |
| Mass | 6.535 kg |
