SKU: UKPE205HN-SNR

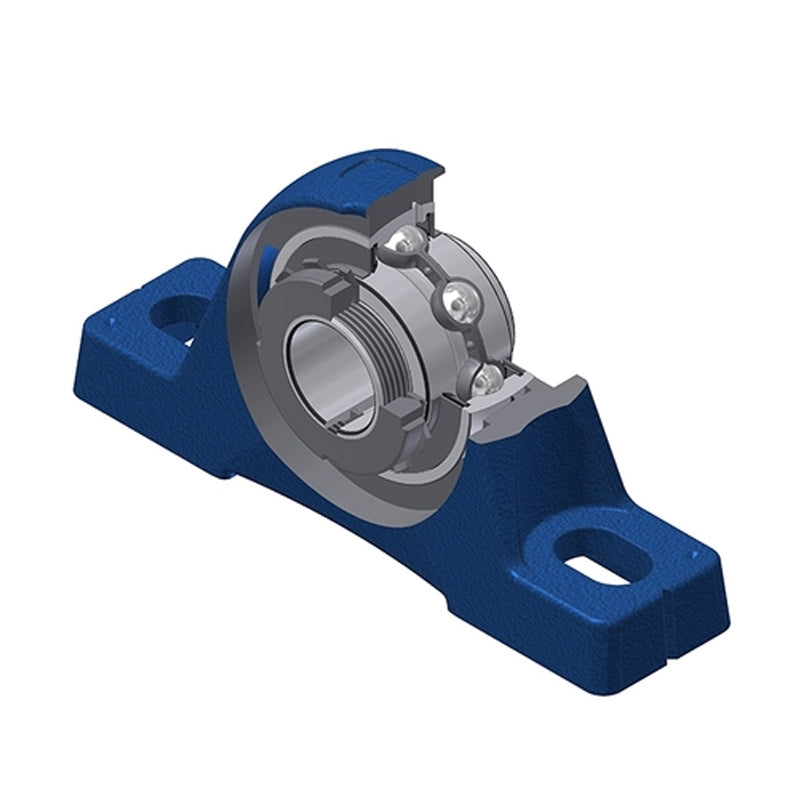

SNR UKPE205HN Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 12mm Shaft - Allow 2-3 Days
SNR UKPE205HN Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 12mm Shaft - Allow 2-3 Days
Regular price
Rs. 8,514.53
Regular price
Sale price
Rs. 8,514.53
Taxes included.
In stock
Price Break
5+
Rs. 8,429.38
10+
Rs. 8,088.80
20+
Rs. 7,918.51
50+
Rs. 7,663.08
100+
Rs. 7,492.79
500+
Rs. 7,067.06
1000+
Rs. 5,960.17
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- UKPE
- Bolt Hole Centres:
- 103mm
Technical
Technical

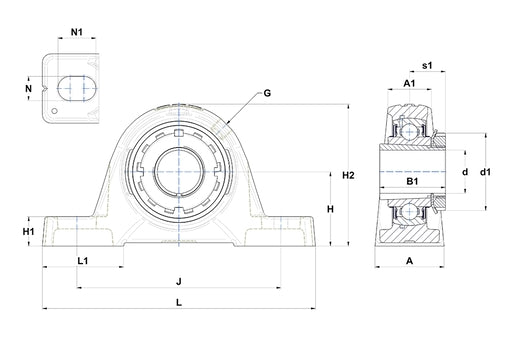

| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 36mm |
| A1 | 21mm |
| B | 21mm |
| d1 | 38mm |
| H | 36.5mm |
| H1 | 14.5mm |
| H2 | 70mm |
| J | 103mm |
| L | 130mm |
| L1 | 39mm |
| N | 11mm |
| N1 | 19mm |
| s1 | 18.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2305 |
| Mass | 0.74 kg |
