SNR UKPA211H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKPA211H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
Rs. 12,762.19
Regular price
Sale price
Rs. 12,762.19
Taxes included.
In stock
Price Break
5+
Rs. 12,634.57
10+
Rs. 12,124.08
20+
Rs. 11,868.84
50+
Rs. 11,485.97
100+
Rs. 11,230.73
500+
Rs. 10,592.62
1000+
Rs. 8,933.53
Description
Description
|

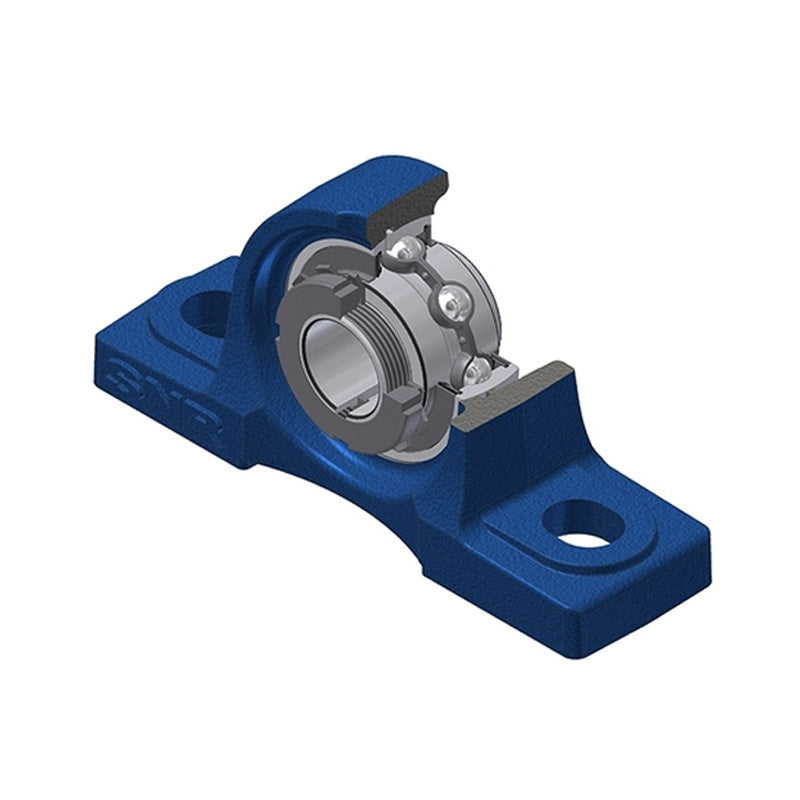

UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKPA
- Bolt Hole Centres:
- 104mm
Technical
Technical

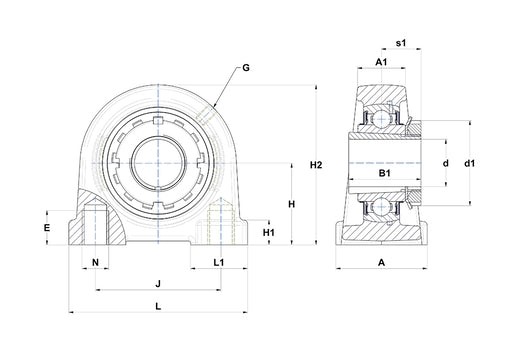

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 66mm |
| A1 | 33mm |
| B | 33mm |
| d1 | 75mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 14mm |
| H2 | 125mm |
| J | 104mm |
| L | 140mm |
| L1 | 47mm |
| N | M16 |
| s1 | 29mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |

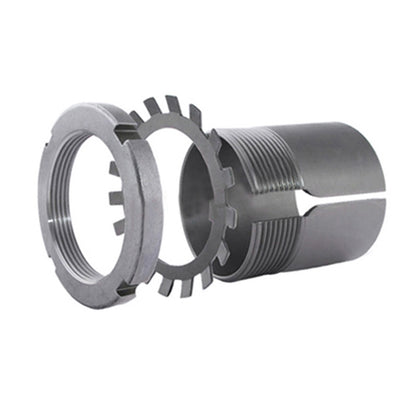

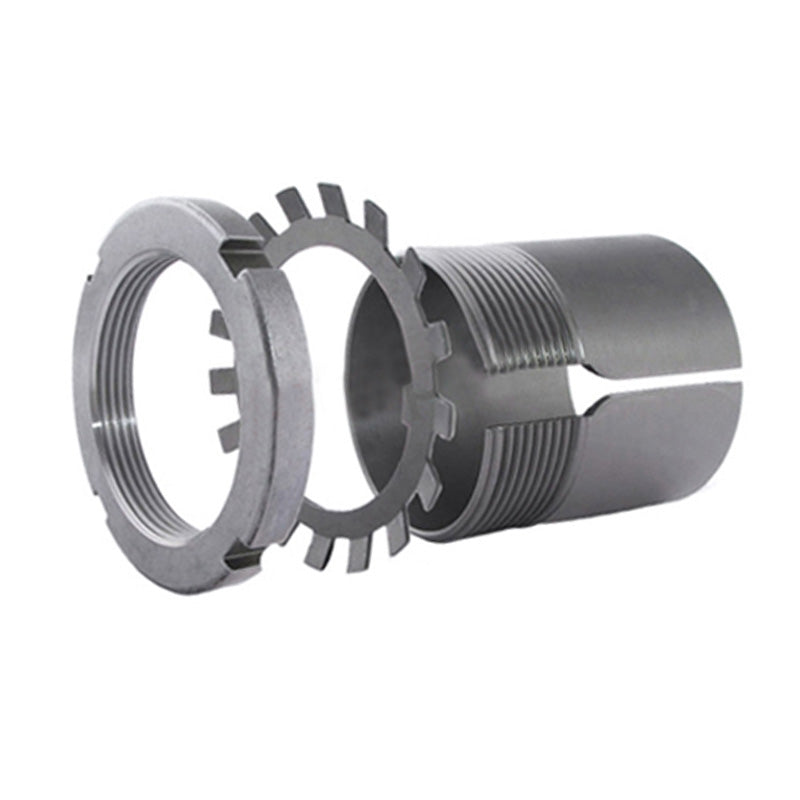

| Adaptor sleeve | H2311 |
| Mass | 3.31 kg |
