SKU: UKFE210HN-SNR

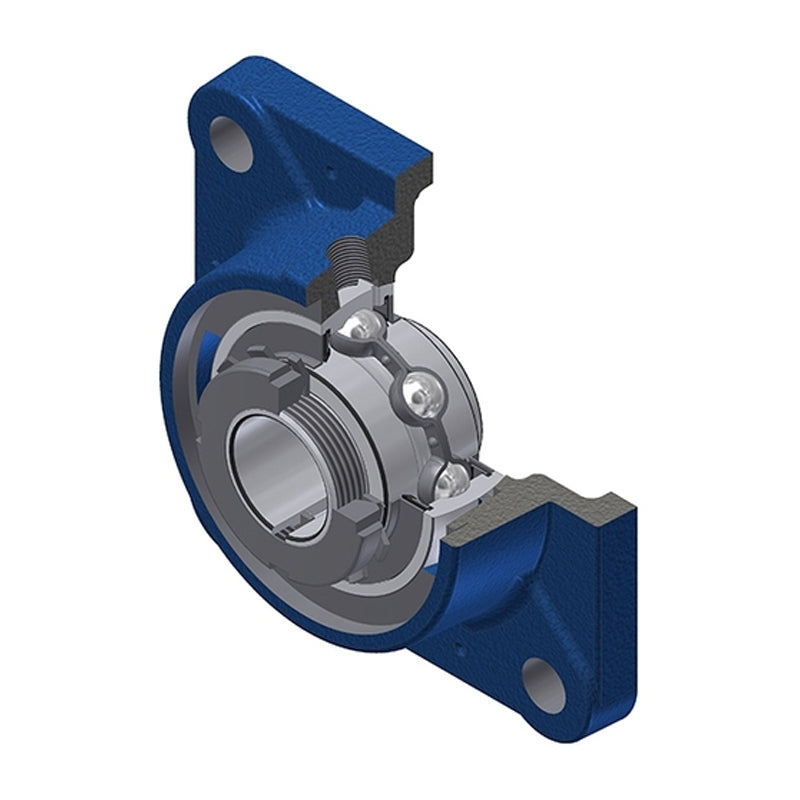

SNR UKFE210HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKFE210HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
Rs. 9,931.70
Regular price
Sale price
Rs. 9,931.70
Taxes included.
In stock
Price Break
5+
Rs. 9,832.38
10+
Rs. 9,435.12
20+
Rs. 9,236.48
50+
Rs. 8,938.53
100+
Rs. 8,739.90
500+
Rs. 8,243.31
1000+
Rs. 6,952.19
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKFE
- Bolt Hole Centres:
- 111mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 44mm |
| A1 | 13mm |
| A2 | 55.5mm |
| B | 31mm |
| B1 | 55mm |
| d1 | 70mm |
| e | 28mm |
| J | 111mm |
| L | 146mm |
| N | 18mm |
| s1 | 27.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2310 |
| Mass | 2.66 kg |
