SKU: UKFE207HCO-SNR

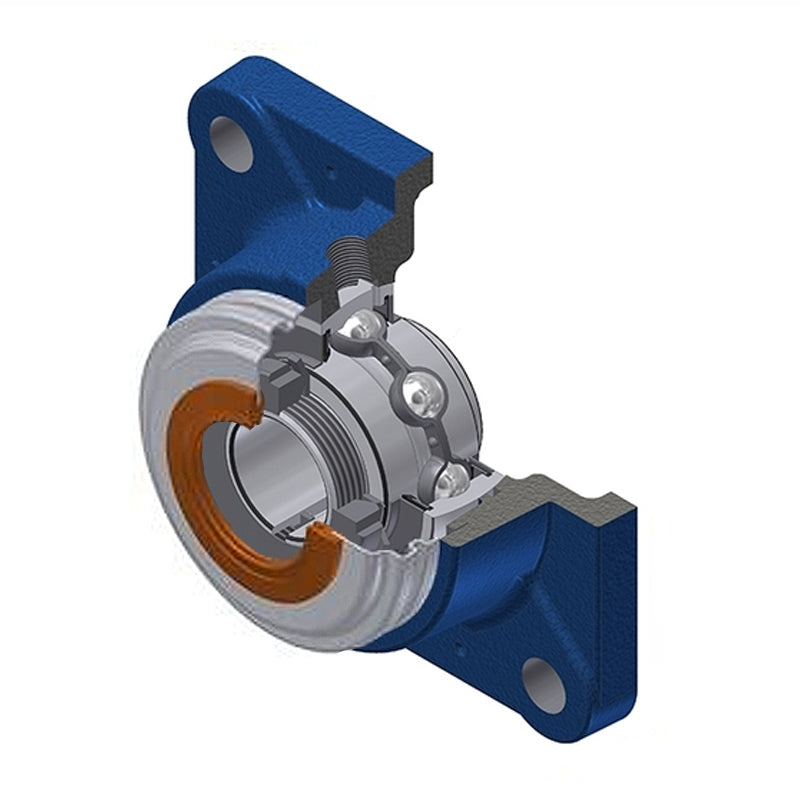

SNR UKFE207HCO Metric Four Bolt Square Cast Iron Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
SNR UKFE207HCO Metric Four Bolt Square Cast Iron Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price
Rs. 8,509.41
Regular price
Sale price
Rs. 8,509.41
Taxes included.
In stock
Price Break
5+
Rs. 8,424.32
10+
Rs. 8,083.94
20+
Rs. 7,913.75
50+
Rs. 7,658.47
100+
Rs. 7,488.28
500+
Rs. 7,062.81
1000+
Rs. 5,956.59
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKFE
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 36mm |
| A1 | 12.5mm |
| A2 | 43.5mm |
| B | 27mm |
| B1 | 43mm |
| d1 | 52mm |
| e | 21mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| Dz | 80mm |
| Z | 50.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2307 |
| Mass | 1.668 kg |
