SKU: UKFA209HCC-SNR

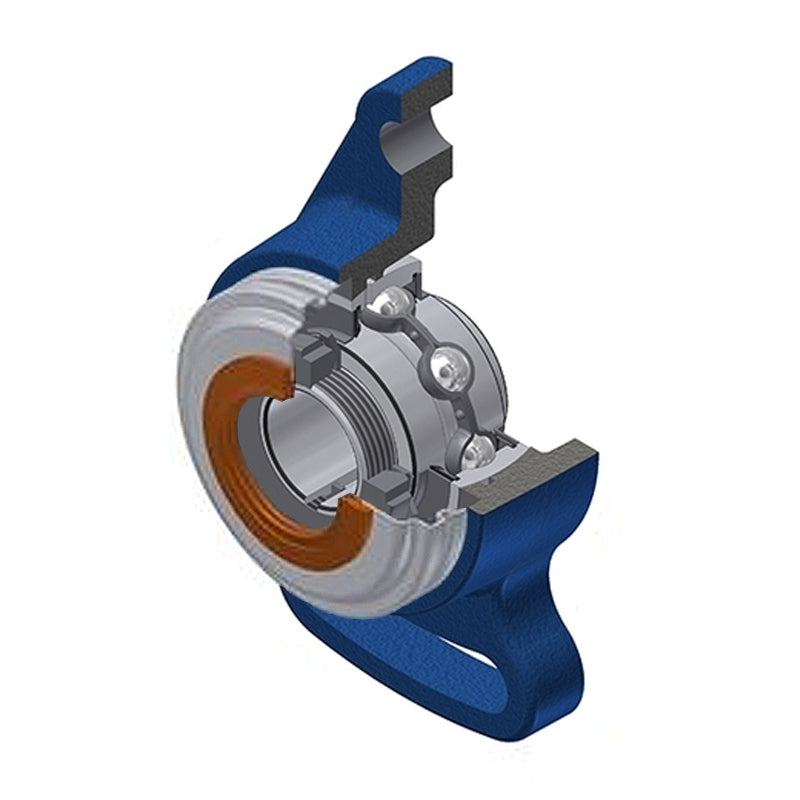

SNR UKFA209HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
SNR UKFA209HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
Rs. 9,926.58
Regular price
Sale price
Rs. 9,926.58
Taxes included.
In stock
Price Break
5+
Rs. 9,827.31
10+
Rs. 9,430.25
20+
Rs. 9,231.72
50+
Rs. 8,933.92
100+
Rs. 8,735.39
500+
Rs. 8,239.06
1000+
Rs. 6,948.61
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKFA
- Bolt Hole Centres:
- 148mm
Technical
Technical

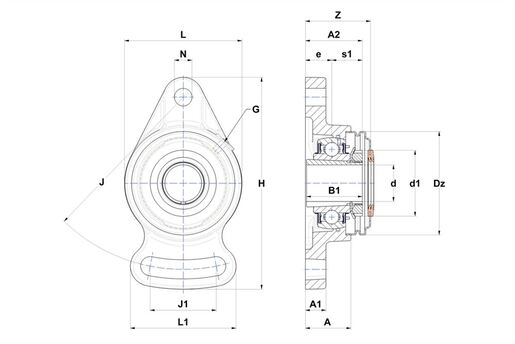

| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 38mm |
| A1 | 18mm |
| A2 | 48mm |
| B | 30mm |
| B1 | 50mm |
| d1 | 65mm |
| e | 22mm |
| H | 181mm |
| J | 148mm |
| J1 | 72mm |
| L | 108mm |
| L1 | 90mm |
| N | 15mm |
| Dz | 95mm |
| Z | 57.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2309 |
| Mass | 2.09 kg |
