SKU: UKC212/HS2312
UKC212/HS2312 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 5.1181 inch Outside Dia
UKC212/HS2312 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 5.1181 inch Outside Dia
Regular price
Rs. 9,689.74
Regular price
Sale price
Rs. 9,689.74
Taxes included.
In stock
Price Break
10+
Rs. 8,623.87
19+
Rs. 8,139.38
29+
Rs. 8,042.48
39+
Rs. 7,945.59
49+
Rs. 7,848.69
74+
Rs. 7,751.79
99+
Rs. 7,267.31
199+
Rs. 7,170.41
249+
Rs. 7,073.51
499+
Rs. 6,976.61
999+
Rs. 6,782.82
Description
Description

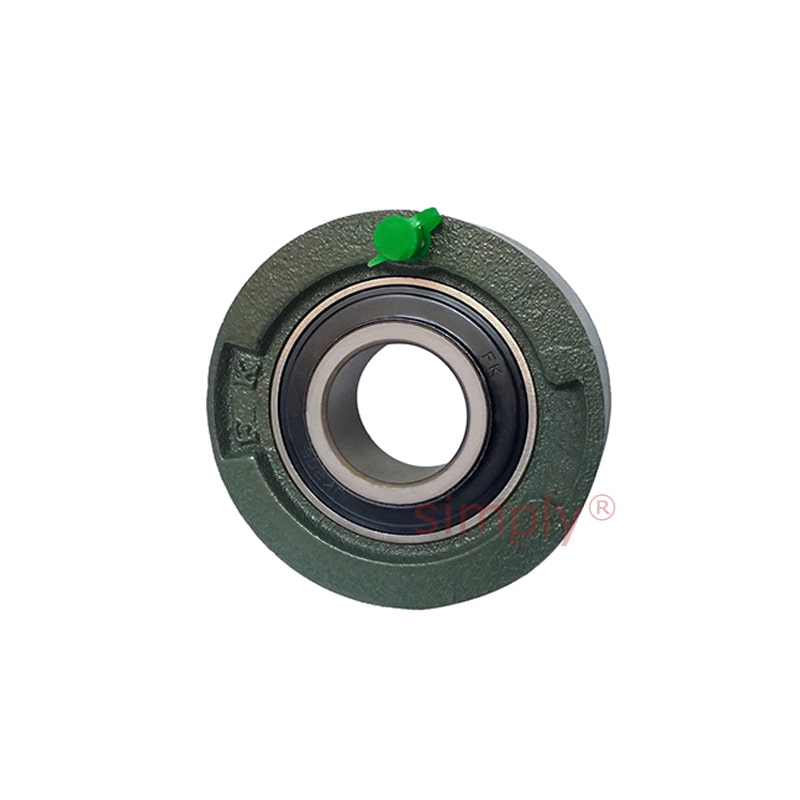

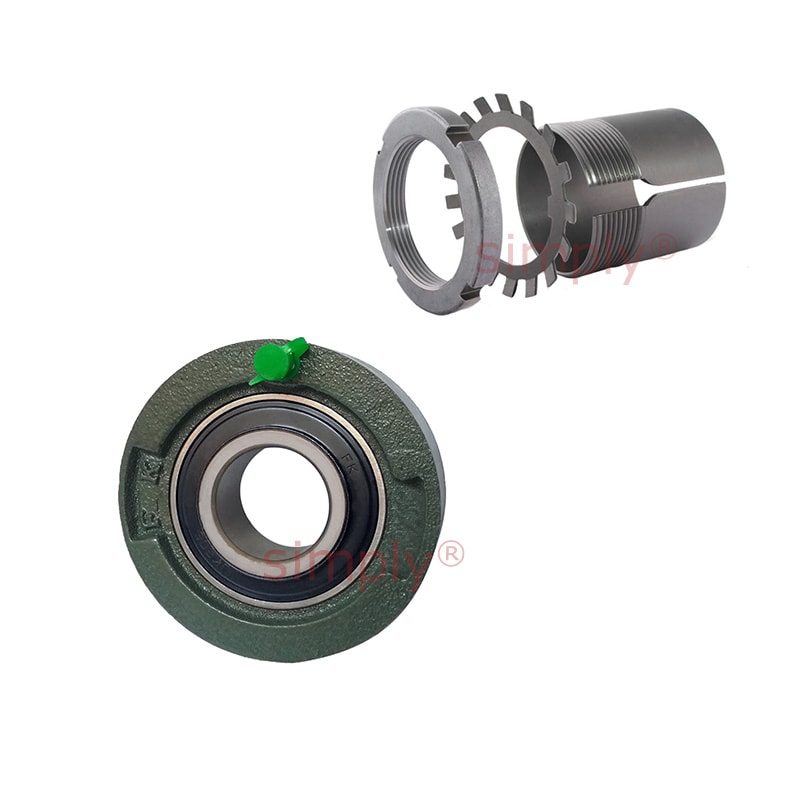

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 130mm = 5.1181 inch
- Style:
- UKC
Technical
Technical

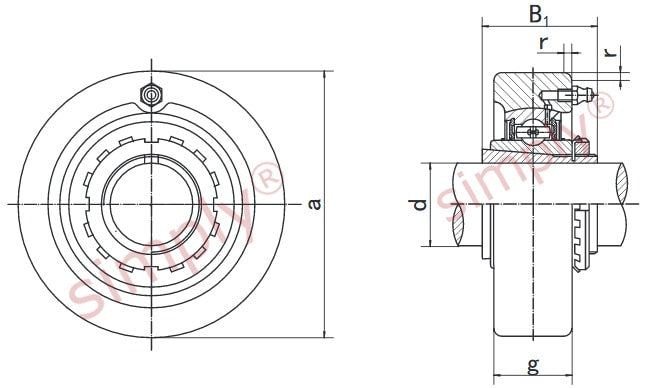

| Bore d | 2-3/8 inch |
|---|---|
| Outer Dia a | 5.1181 inch |
| g | 1-1/2 inch |
| r | 0.098 inch |
| B | 2.441 inch |
| Bearing No | UK212;HS2312 |
| Housing No | C212 |
