SKU: UKC211/HE2311
UKC211/HE2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2 inch Bore Insert 4.9213 inch Outside Dia
UKC211/HE2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2 inch Bore Insert 4.9213 inch Outside Dia
Regular price
Rs. 8,198.32
Regular price
Sale price
Rs. 8,198.32
Taxes included.
In stock
Price Break
10+
Rs. 7,296.50
19+
Rs. 6,886.59
29+
Rs. 6,804.61
39+
Rs. 6,722.62
49+
Rs. 6,640.64
74+
Rs. 6,558.66
99+
Rs. 6,148.74
199+
Rs. 6,066.76
249+
Rs. 5,984.77
499+
Rs. 5,902.79
999+
Rs. 5,738.82
Description
Description

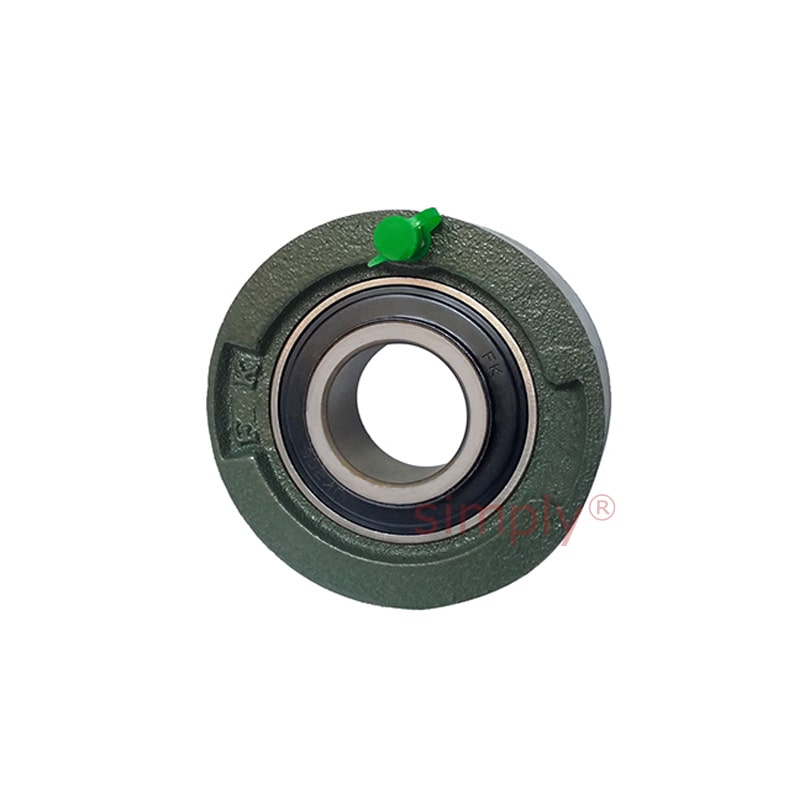

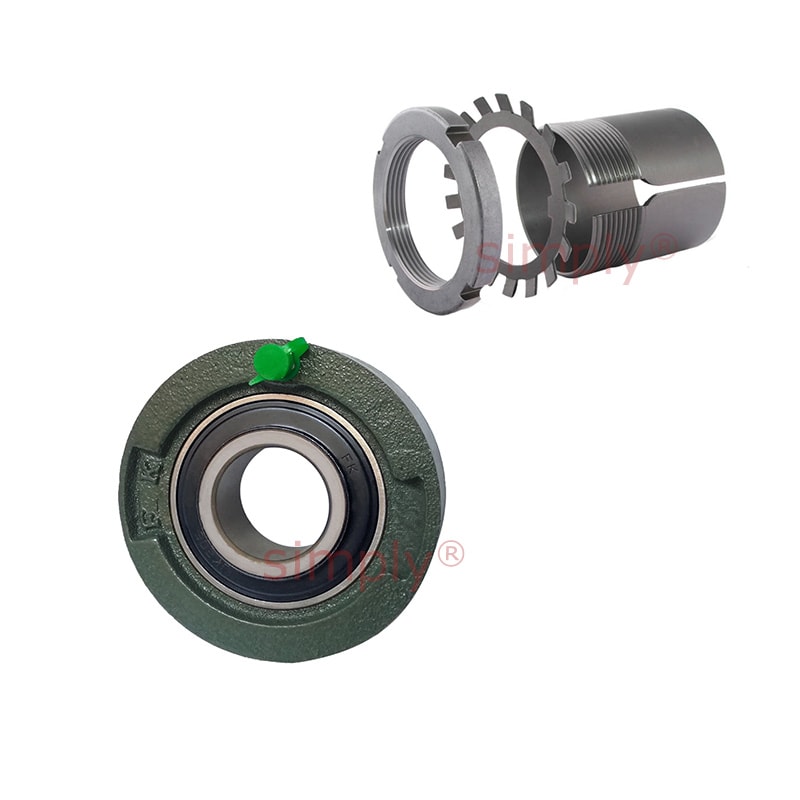

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 125.001mm = 4.9213 inch
- Style:
- UKC
Technical
Technical
| Bore d | 2 inch |
|---|---|
| Outer Dia a | 4.9213 inch |
| g | 1-3/8 inch |
| r | 0.098 inch |
| B | 2.323 inch |
| Bearing No | UK211;HE2311 |
| Housing No | C211 |
