SKU: UKC211/HA2311

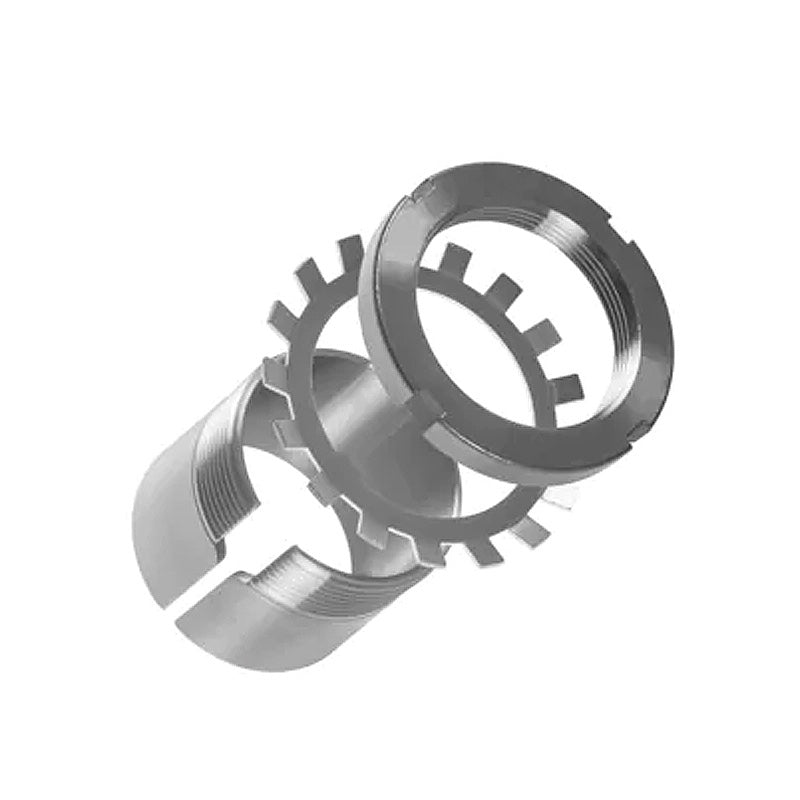

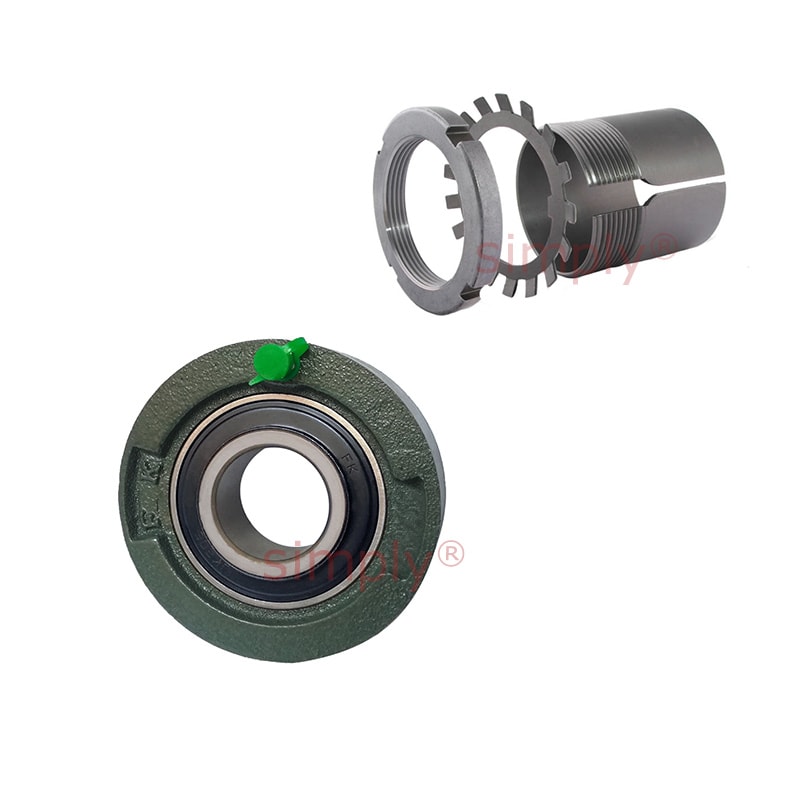

UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
Regular price
Rs. 10,589.71
Regular price
Sale price
Rs. 10,589.71
Taxes included.
In stock
Price Break
10+
Rs. 9,424.84
19+
Rs. 8,895.36
29+
Rs. 8,789.46
39+
Rs. 8,683.56
49+
Rs. 8,577.67
74+
Rs. 8,471.77
99+
Rs. 7,942.28
199+
Rs. 7,836.39
249+
Rs. 7,730.49
499+
Rs. 7,624.59
999+
Rs. 7,412.80
Description
Description

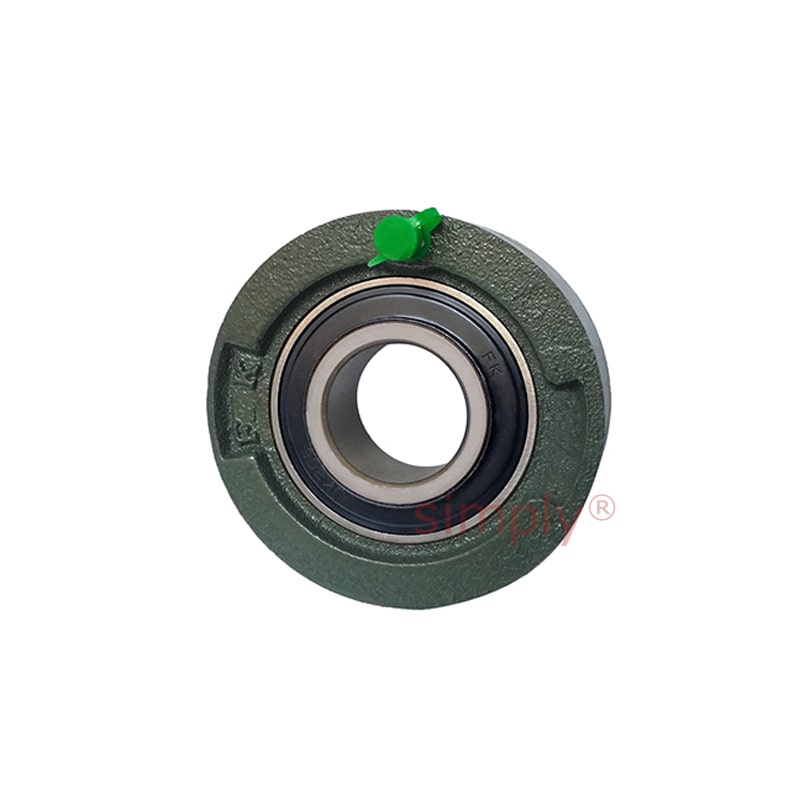

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 125.001mm = 4.9213 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-15/16 inch |
|---|---|
| Outer Dia a | 4.9213 inch |
| g | 1-3/8 inch |
| r | 0.098 inch |
| B | 2.323 inch |
| Bearing No | UK211;HA2311 |
| Housing No | C211 |
