SKU: UKC210D1/H2310X-NTN

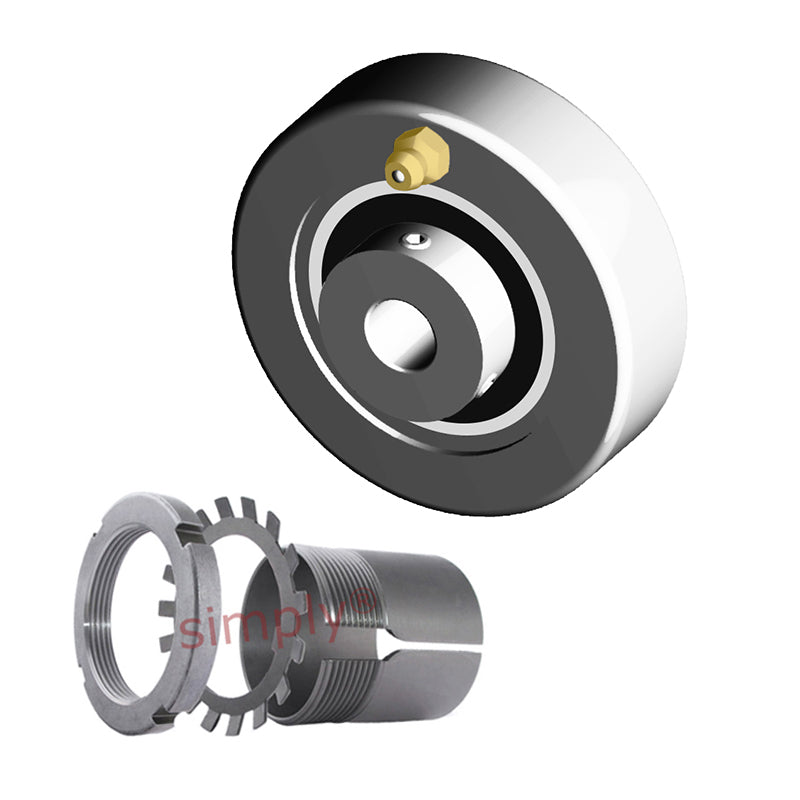

NTN UKC210D1/H2310X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
NTN UKC210D1/H2310X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 11,342.46
Regular price
Sale price
Rs. 11,342.46
Taxes included.
In stock
Price Break
5+
Rs. 11,229.04
10+
Rs. 10,775.34
20+
Rs. 10,548.49
50+
Rs. 10,208.21
100+
Rs. 9,981.36
500+
Rs. 9,414.24
1000+
Rs. 7,939.72
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 120mm |
| A | 33mm |
| r | 2.5mm |
| B<sub>1</sub> | 55mm |
| Mass | 2.1 kg |
