SKU: UKC210/HA2310
UKC210/HA2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-11/16 inch Bore Insert 4.7244 inch Outside Dia
UKC210/HA2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-11/16 inch Bore Insert 4.7244 inch Outside Dia
Regular price
Rs. 10,919.83
ex VAT
Regular price
Sale price
Rs. 10,919.83
ex VAT
In stock
Price Break
10+
Rs. 9,718.65
19+
Rs. 9,172.66
29+
Rs. 9,063.46
39+
Rs. 8,954.26
49+
Rs. 8,845.06
74+
Rs. 8,735.86
99+
Rs. 8,189.87
199+
Rs. 8,080.67
249+
Rs. 7,971.48
499+
Rs. 7,862.28
999+
Rs. 7,643.88
Couldn't load pickup availability
Description
Description

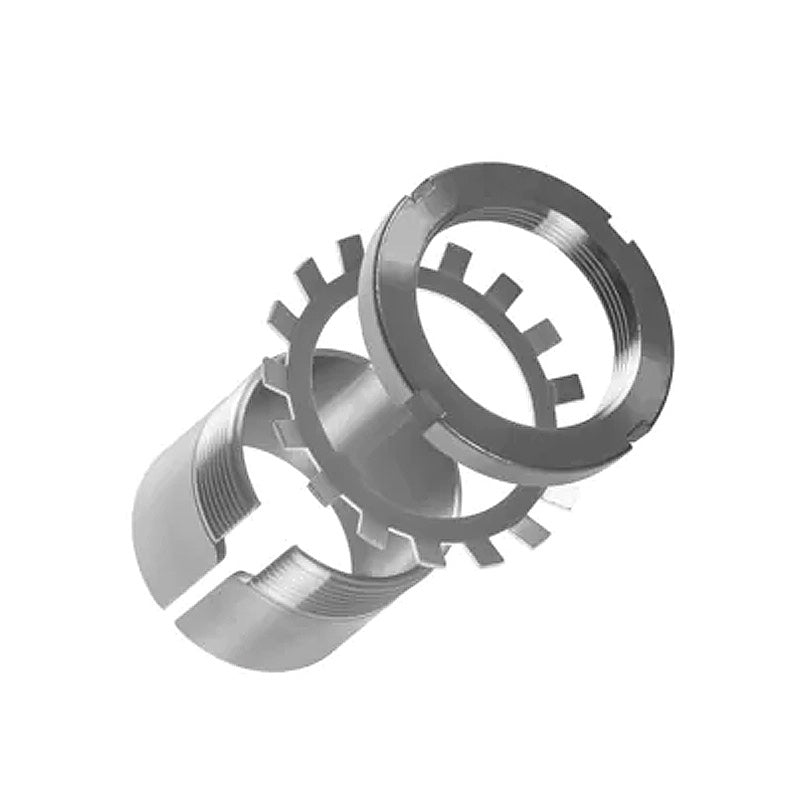

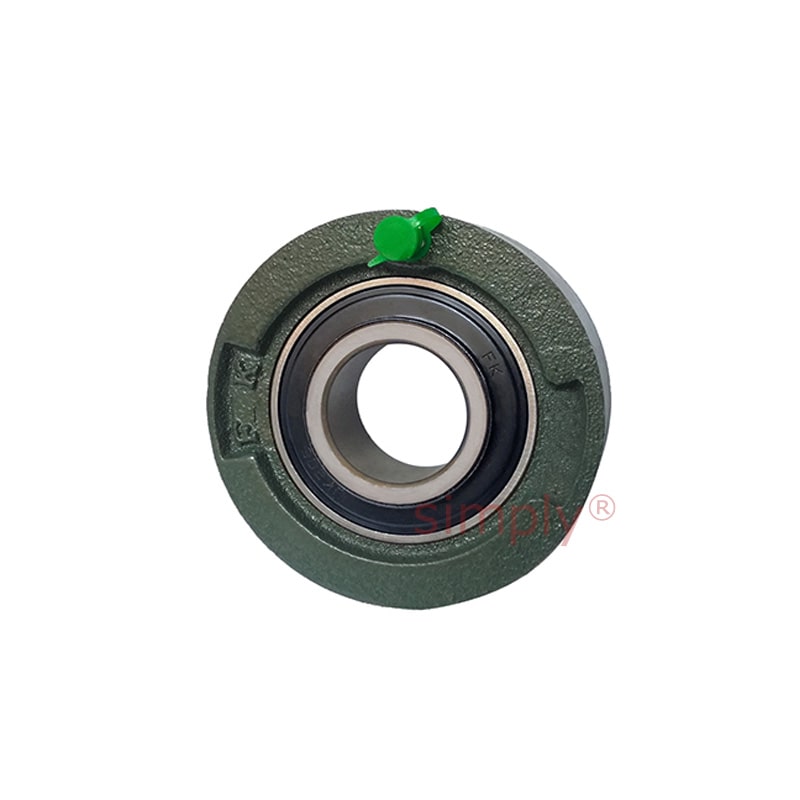

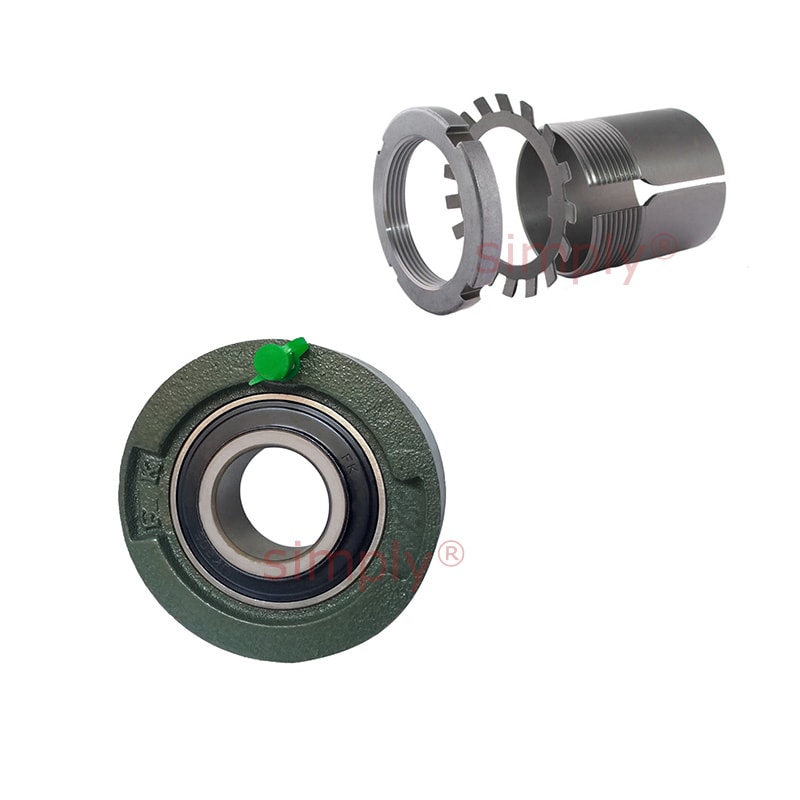

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-11/16 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/64 inch |
| r | 0.098 inch |
| B | 2.165 inch |
| Bearing No | UK210;HA2310 |
| Housing No | C210 |
