SKU: UKC209D1/H2309X-NTN

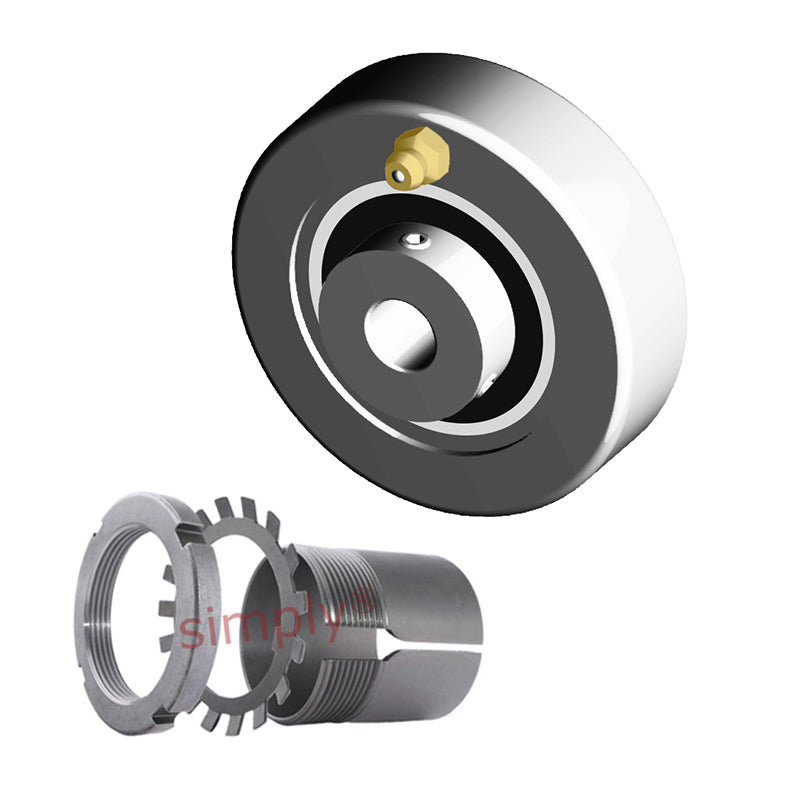

NTN UKC209D1/H2309X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
NTN UKC209D1/H2309X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 9,925.30
Regular price
Sale price
Rs. 9,925.30
Taxes included.
In stock
Price Break
5+
Rs. 9,826.05
10+
Rs. 9,429.04
20+
Rs. 9,230.53
50+
Rs. 8,932.77
100+
Rs. 8,734.26
500+
Rs. 8,238.00
1000+
Rs. 6,947.71
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 110mm |
| A | 31mm |
| r | 2.5mm |
| B<sub>1</sub> | 50mm |
| Mass | 1.6 kg |
