SKU: UKC208/HS2308
UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
Regular price
Rs. 8,557.75
ex VAT
Regular price
Sale price
Rs. 8,557.75
ex VAT
In stock
Price Break
10+
Rs. 7,616.40
19+
Rs. 7,188.51
29+
Rs. 7,102.93
39+
Rs. 7,017.36
49+
Rs. 6,931.78
74+
Rs. 6,846.20
99+
Rs. 6,418.31
199+
Rs. 6,332.74
249+
Rs. 6,247.16
499+
Rs. 6,161.58
999+
Rs. 5,990.43
Couldn't load pickup availability
Description
Description

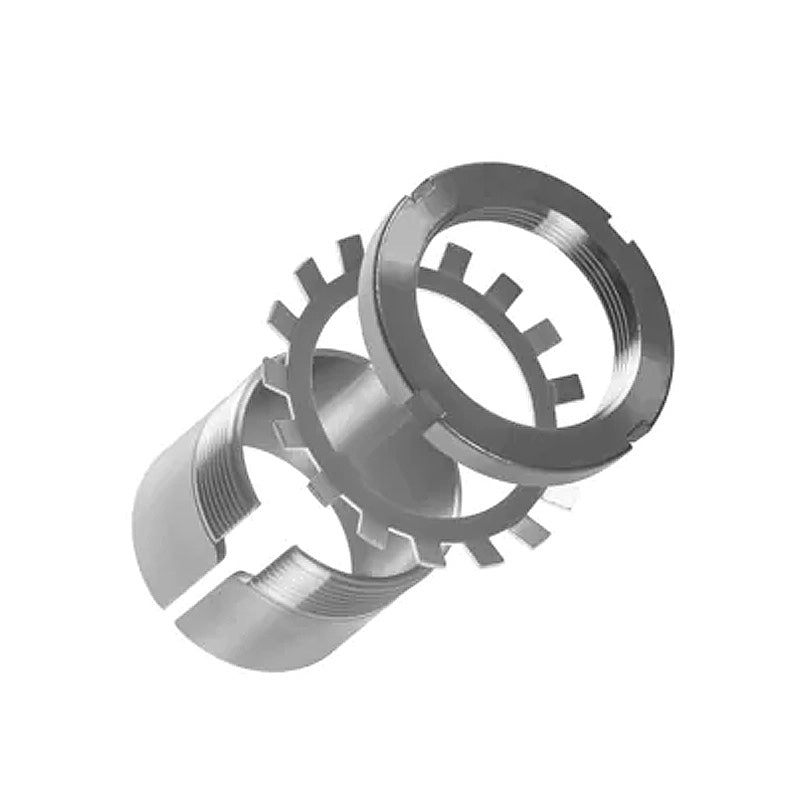

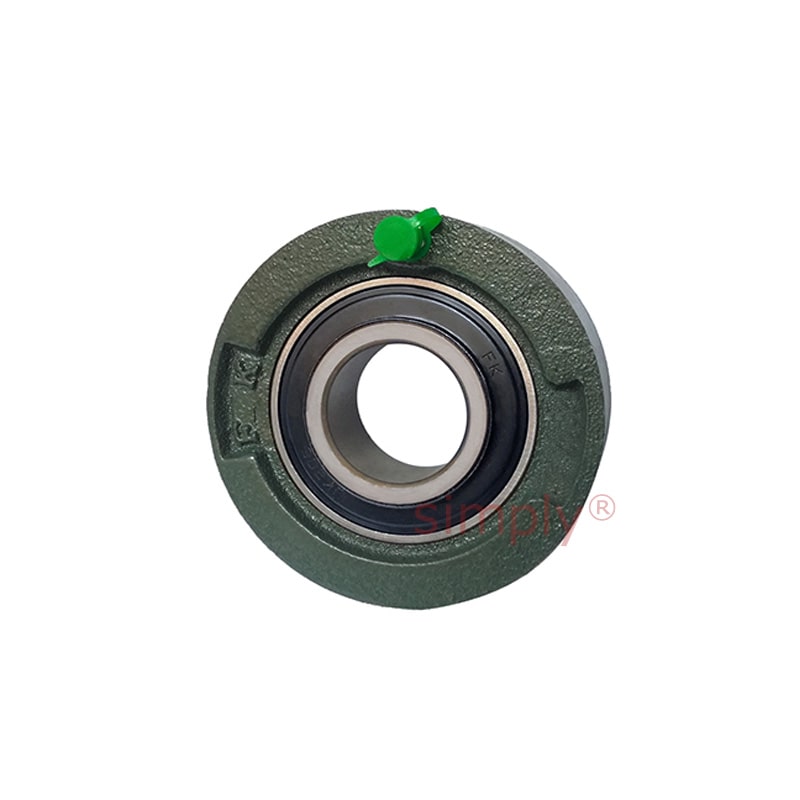

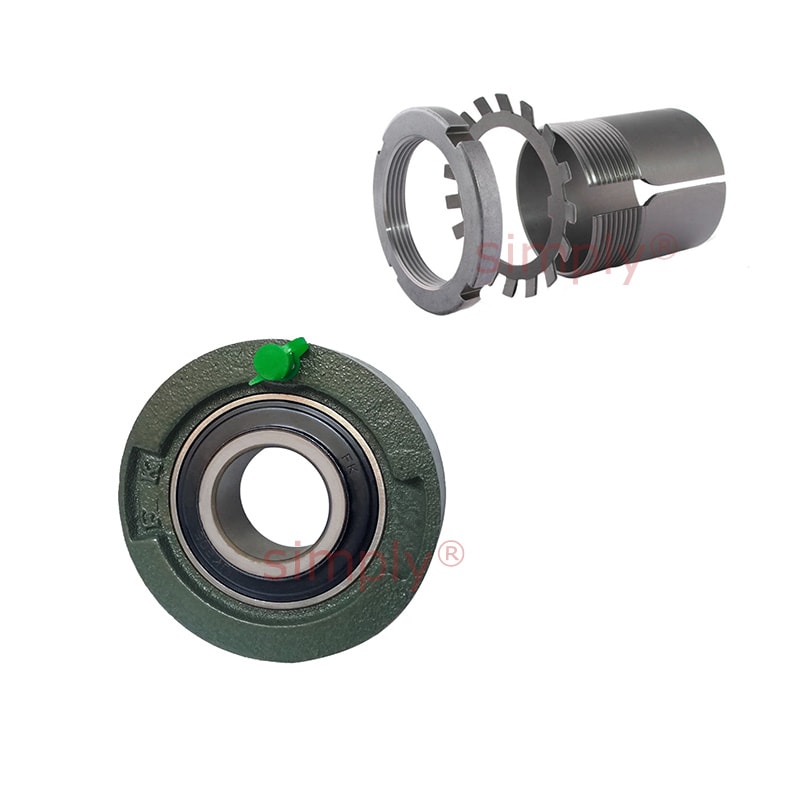

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-3/8 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.811 inch |
| Bearing No | UK208;HS2308 |
| Housing No | C208 |
