SKU: UKC208/HE2308

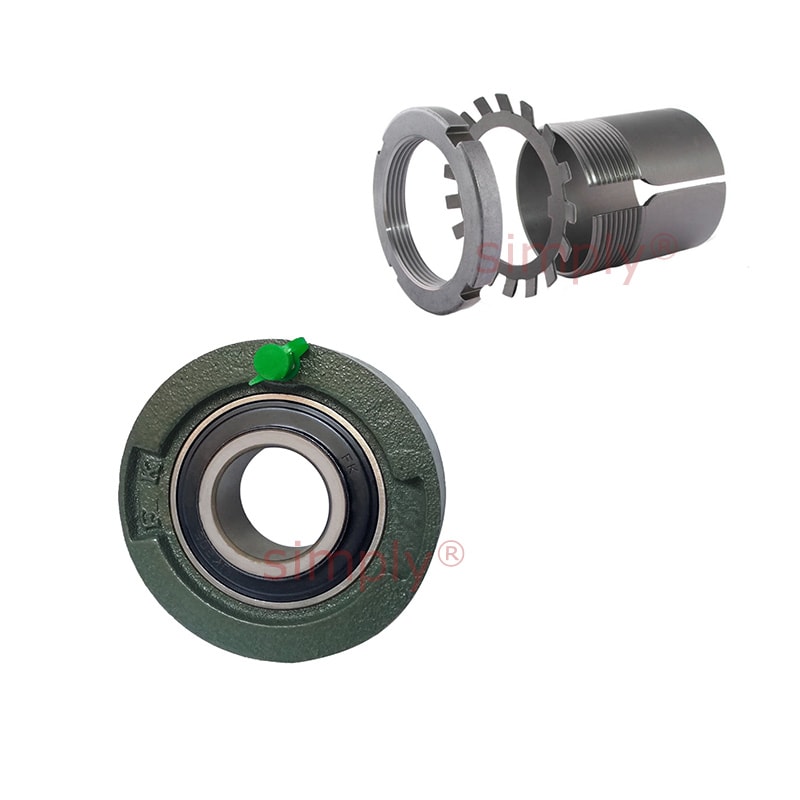

UKC208/HE2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia
UKC208/HE2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia
Regular price
Rs. 5,383.19
Regular price
Sale price
Rs. 5,383.19
Taxes included.
In stock
Price Break
10+
Rs. 4,791.04
19+
Rs. 4,521.88
29+
Rs. 4,468.05
39+
Rs. 4,414.22
49+
Rs. 4,360.38
74+
Rs. 4,306.55
99+
Rs. 4,037.39
199+
Rs. 3,983.56
249+
Rs. 3,929.73
499+
Rs. 3,875.90
999+
Rs. 3,768.23
Description
Description

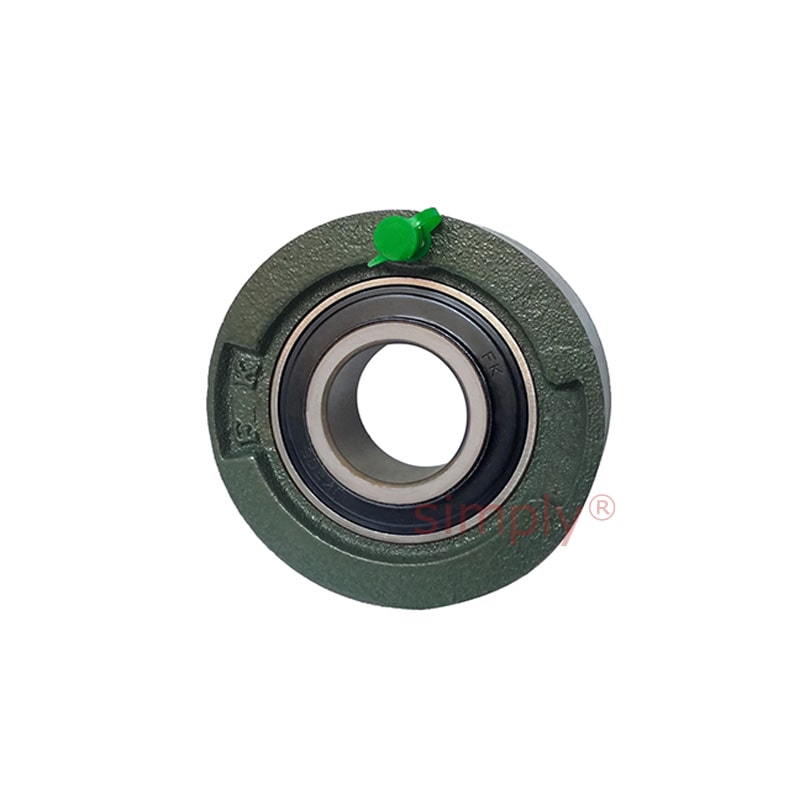

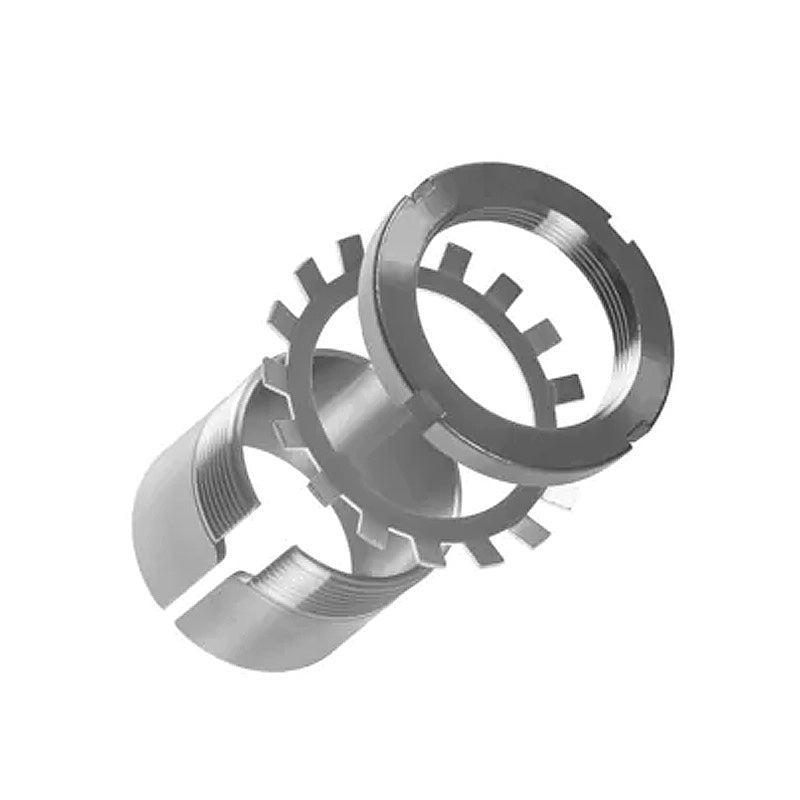

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-1/4 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.811 inch |
| Bearing No | UK208;HE2308 |
| Housing No | C208 |
