SKU: UKC207H-SNR
SNR UKC207H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
SNR UKC207H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 7,092.24
Regular price
Sale price
Rs. 7,092.24
Taxes included.
In stock
Price Break
5+
Rs. 7,021.32
10+
Rs. 6,737.63
20+
Rs. 6,595.78
50+
Rs. 6,383.02
100+
Rs. 6,241.17
500+
Rs. 5,886.56
1000+
Rs. 4,964.57
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKC
Technical
Technical

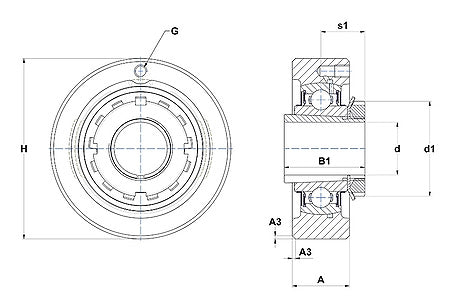

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 28mm |
| A3 | 1.5mm |
| B1 | 43mm |
| d1 | 52mm |
| H | 90mm |
| s1 | 22.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.94 kg |
