SKU: UKC206/HS2306

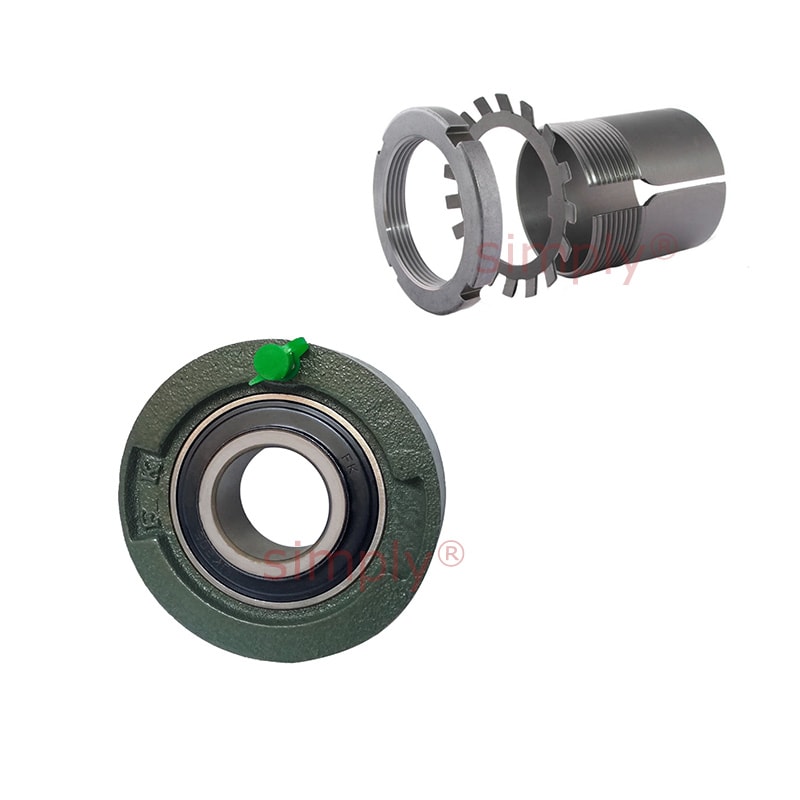

UKC206/HS2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 7/8 inch Bore Insert 3.3465 inch Outside Dia
UKC206/HS2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 7/8 inch Bore Insert 3.3465 inch Outside Dia
Regular price
Rs. 5,900.39
Regular price
Sale price
Rs. 5,900.39
Taxes included.
In stock
Price Break
10+
Rs. 5,251.35
19+
Rs. 4,956.33
29+
Rs. 4,897.32
39+
Rs. 4,838.32
49+
Rs. 4,779.32
74+
Rs. 4,720.31
99+
Rs. 4,425.29
199+
Rs. 4,366.29
249+
Rs. 4,307.28
499+
Rs. 4,248.28
999+
Rs. 4,130.27
Description
Description

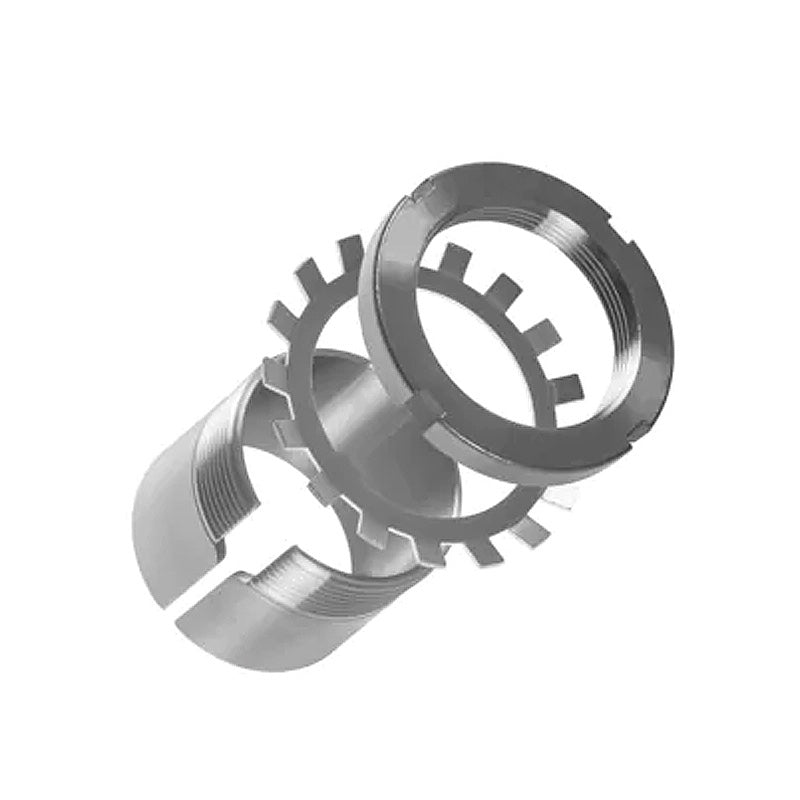

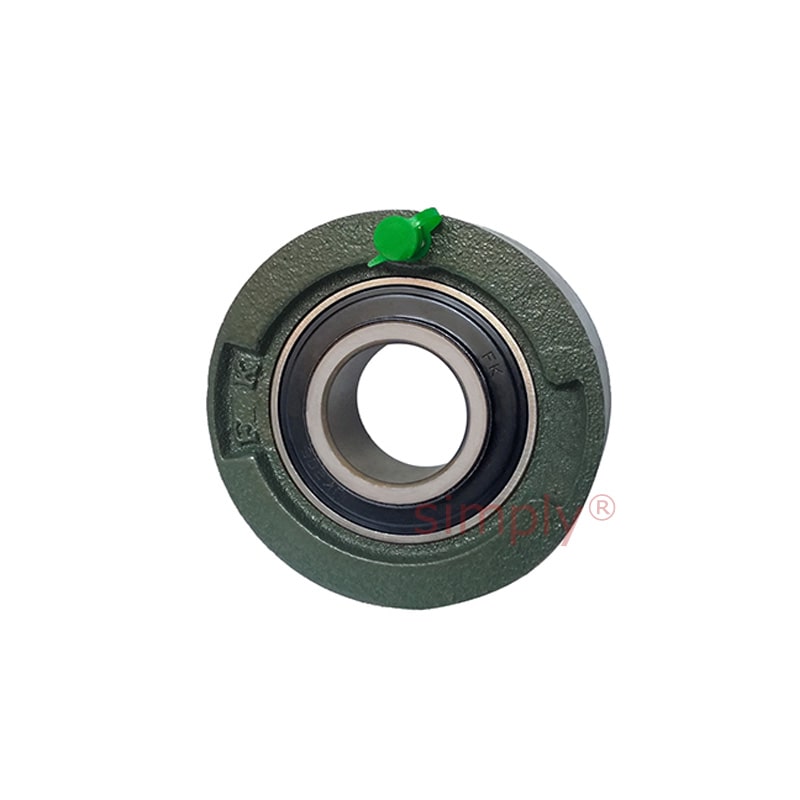

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UKC
Technical
Technical
| Bore d | 7/8 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.496 inch |
| Bearing No | UK206;HS2306 |
| Housing No | C206 |
