SKU: UKC206/HE2306
UKC206/HE2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1 inch Bore Insert 3.3465 inch Outside Dia
UKC206/HE2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1 inch Bore Insert 3.3465 inch Outside Dia
Regular price
Rs. 4,140.13
Regular price
Sale price
Rs. 4,140.13
Taxes included.
In stock
Price Break
10+
Rs. 3,684.72
19+
Rs. 3,477.71
29+
Rs. 3,436.31
39+
Rs. 3,394.91
49+
Rs. 3,353.51
74+
Rs. 3,312.10
99+
Rs. 3,105.10
199+
Rs. 3,063.70
249+
Rs. 3,022.29
499+
Rs. 2,980.89
999+
Rs. 2,898.09
Description
Description

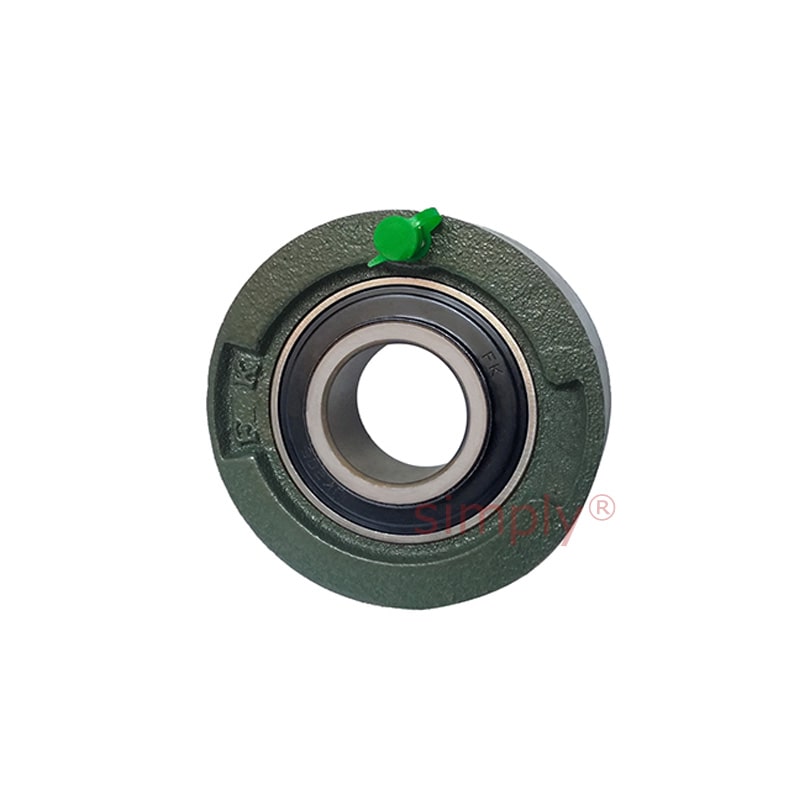

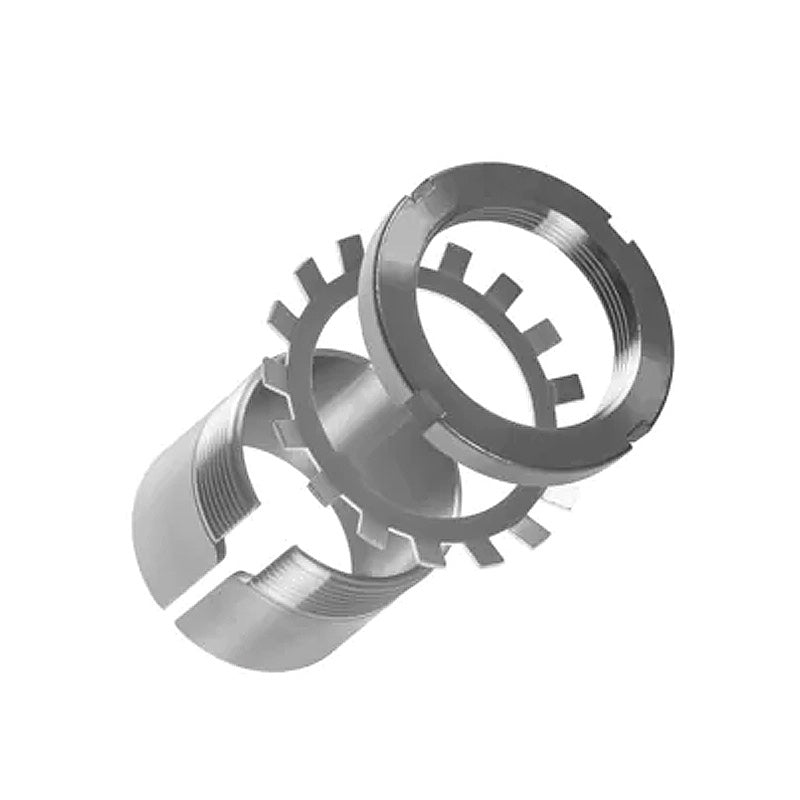

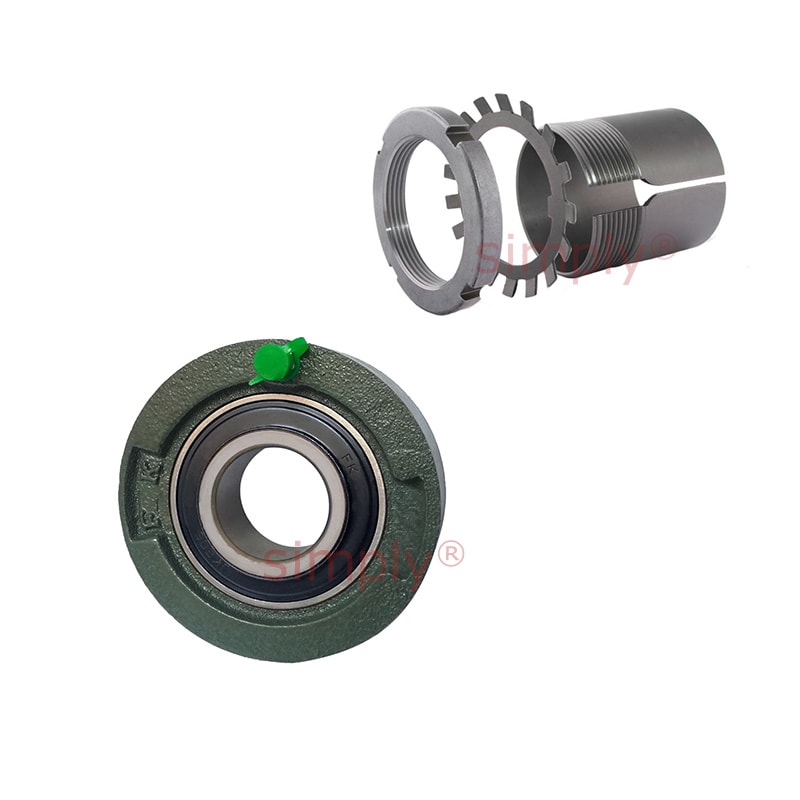

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.496 inch |
| Bearing No | UK206;HE2306 |
| Housing No | C206 |
