SKU: UKC205/HE2305

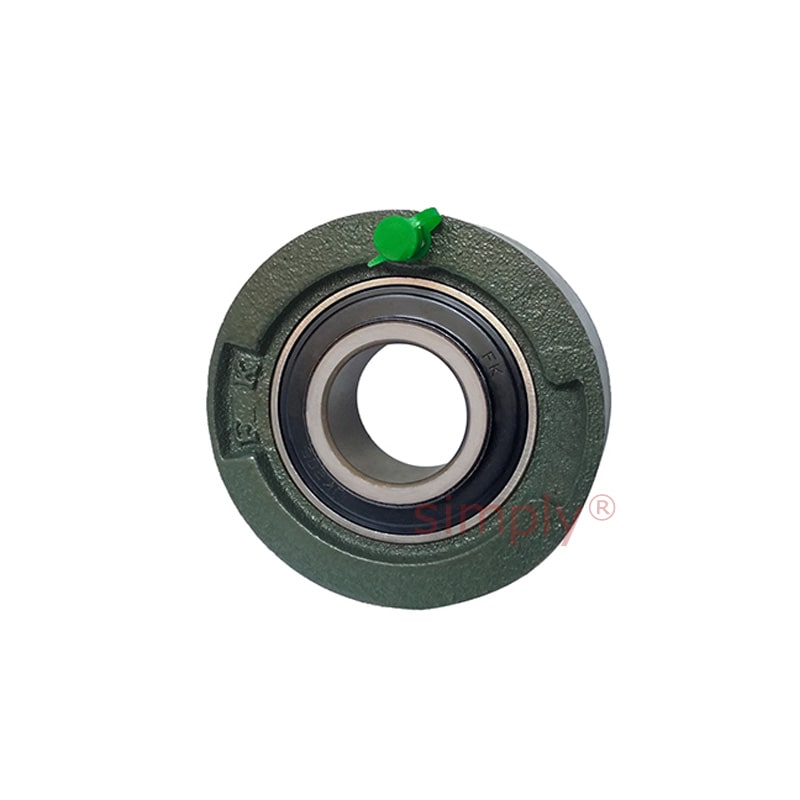

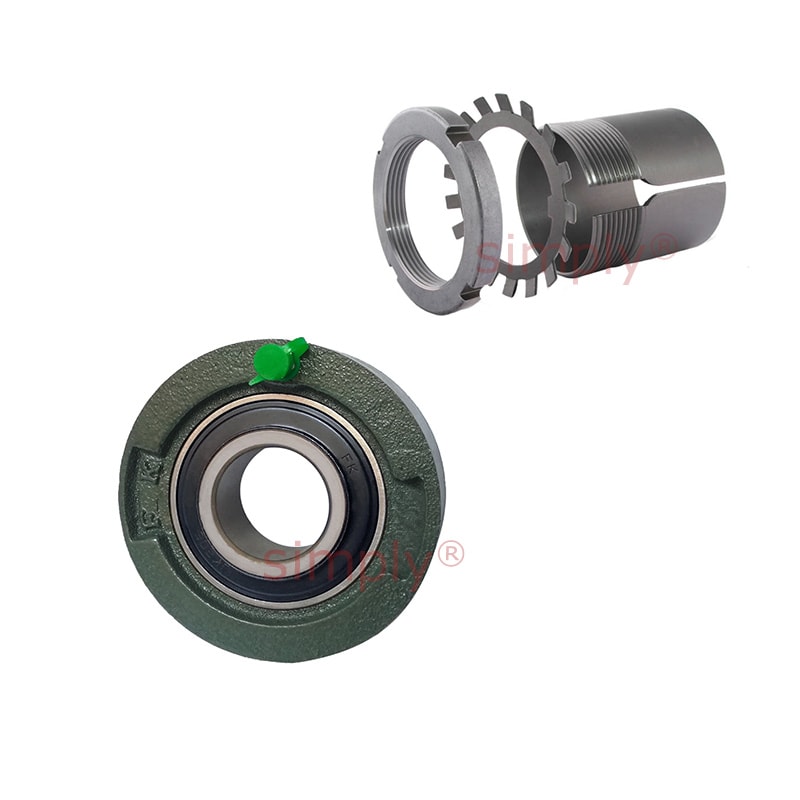

UKC205/HE2305 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 3/4 inch Bore Insert 3.1496 inch Outside Dia
UKC205/HE2305 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 3/4 inch Bore Insert 3.1496 inch Outside Dia
Regular price
Rs. 3,805.76
ex VAT
Regular price
Sale price
Rs. 3,805.76
ex VAT
In stock
Price Break
10+
Rs. 3,387.13
19+
Rs. 3,196.84
29+
Rs. 3,158.78
39+
Rs. 3,120.72
49+
Rs. 3,082.67
74+
Rs. 3,044.61
99+
Rs. 2,854.32
199+
Rs. 2,816.26
249+
Rs. 2,778.20
499+
Rs. 2,740.15
999+
Rs. 2,664.03
Couldn't load pickup availability
Description
Description

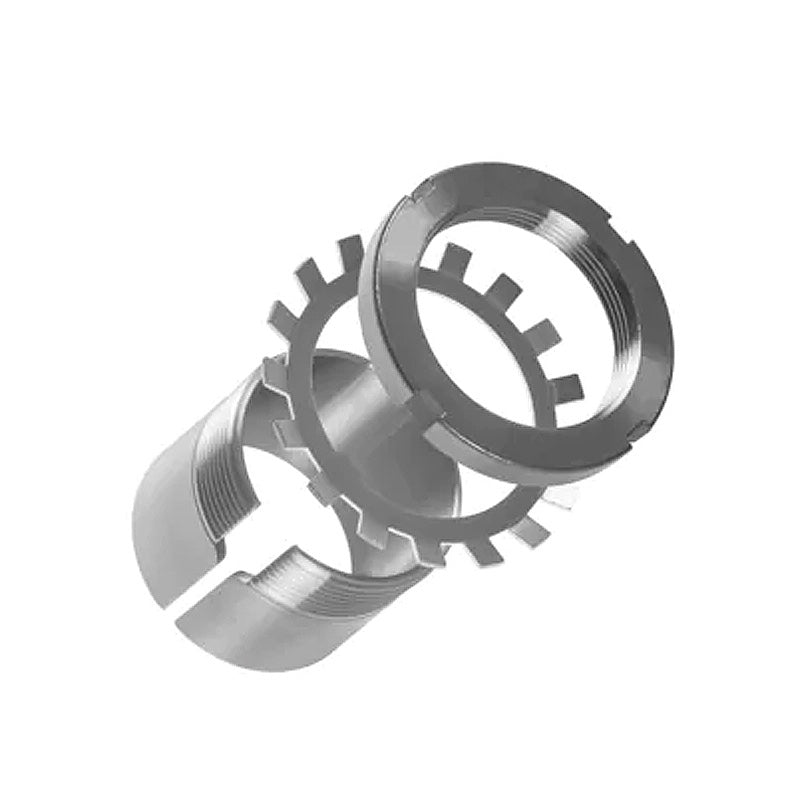

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 80mm = 3.1496 inch
- Style:
- UKC
Technical
Technical
| Bore d | 3/4 inch |
|---|---|
| Outer Dia a | 3.1496 inch |
| g | 55/64 inch |
| r | 0.079 inch |
| B | 1.378 inch |
| Bearing No | UK205;HE2305 |
| Housing No | C205 |
