SKU: UJSP45X22-MB

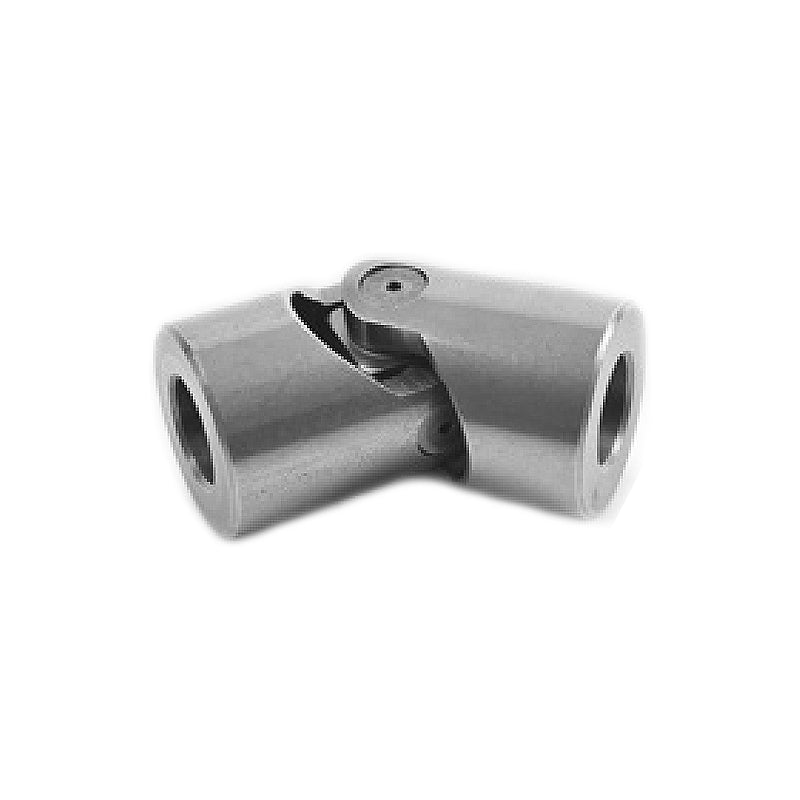

Branded UJSP45X22 Steel Universal Single Joint with Plain Bearing 22x45x95mm - Allow 2-3 Days
Branded UJSP45X22 Steel Universal Single Joint with Plain Bearing 22x45x95mm - Allow 2-3 Days
Regular price
Rs. 9,329.35
ex VAT
Regular price
Sale price
Rs. 9,329.35
ex VAT
In stock
Price Break
10+
Rs. 8,303.12
19+
Rs. 7,836.65
29+
Rs. 7,743.36
39+
Rs. 7,650.07
49+
Rs. 7,556.77
74+
Rs. 7,463.48
99+
Rs. 6,997.01
199+
Rs. 6,903.72
249+
Rs. 6,810.43
499+
Rs. 6,717.13
999+
Rs. 6,530.55
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 22mm
- Outside Diameter:
- 45mm
- Length:
- 95mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 22mm |
|---|---|
| Diameter D | 45mm |
| Overall length L2 | 95mm |
| Pivot centre L1 | 47.5mm |
| Hub length C | 22mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG4M45 |
| Weight KG | 0.95 kg |
