SKU: UJSP25X12-MB

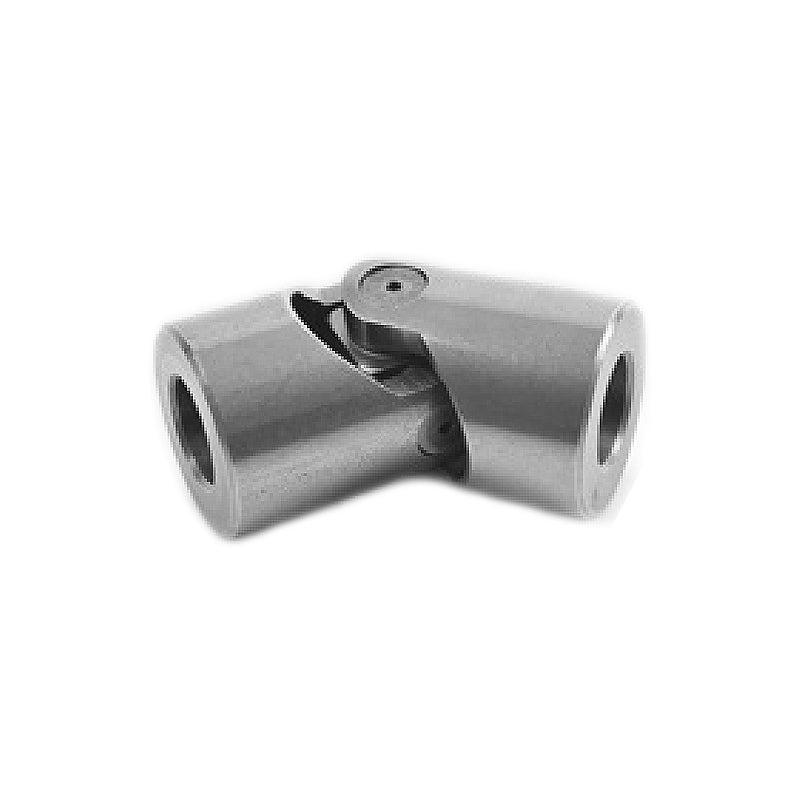

Branded UJSP25X12 Steel Universal Single Joint with Plain Bearing 12x25x56mm - Allow 2-3 Days
Branded UJSP25X12 Steel Universal Single Joint with Plain Bearing 12x25x56mm - Allow 2-3 Days
Regular price
Rs. 7,090.96
Regular price
Sale price
Rs. 7,090.96
Taxes included.
In stock
Price Break
5+
Rs. 7,020.05
10+
Rs. 6,736.41
20+
Rs. 6,594.59
50+
Rs. 6,381.86
100+
Rs. 6,240.04
500+
Rs. 5,885.50
1000+
Rs. 4,963.67
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 12mm
- Outside Diameter:
- 25mm
- Length:
- 56mm
- Style:
- UJSP
Technical
Technical

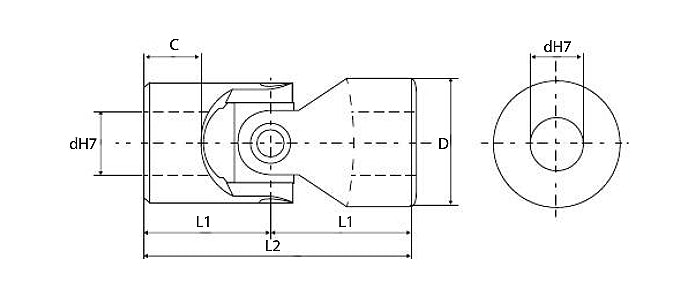

| Bore d H7 | 12mm |
|---|---|
| Diameter D | 25mm |
| Overall length L2 | 56mm |
| Pivot centre L1 | 28mm |
| Hub length C | 13mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG04M25 |
| Weight KG | 0.16 kg |
