SKU: UELP310D1W3-NTN

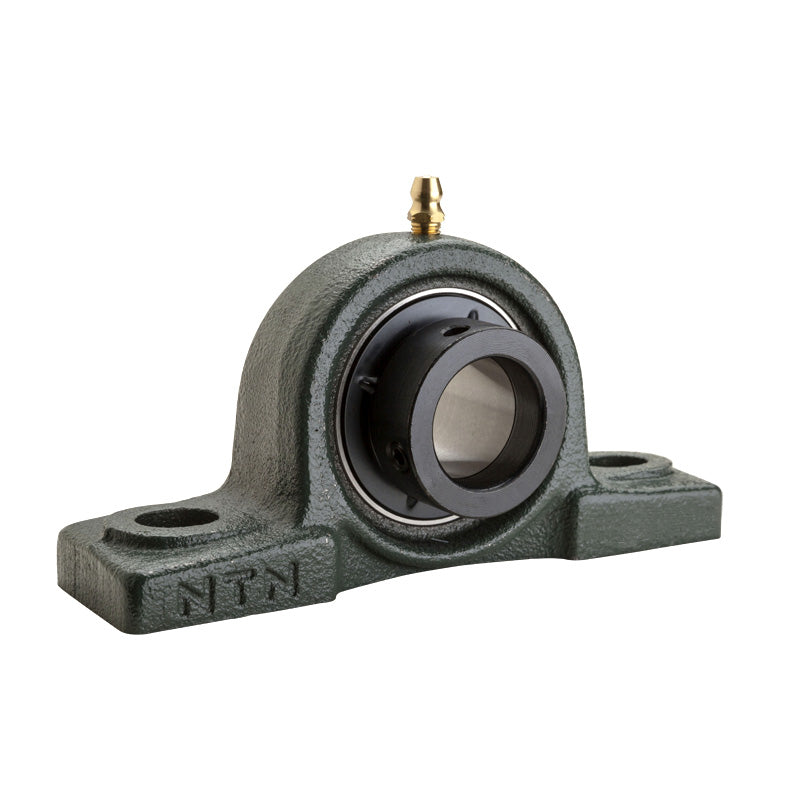

NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 17,017.53
Regular price
Sale price
Rs. 17,017.53
Taxes included.
In stock
Price Break
5+
Rs. 16,847.35
10+
Rs. 16,166.65
20+
Rs. 15,826.30
50+
Rs. 15,315.78
100+
Rs. 14,975.43
500+
Rs. 14,124.55
1000+
Rs. 11,912.27
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 75mm |
| L | 275mm |
| J | 212mm |
| A | 75mm |
| N | 20mm |
| N<sub>1</sub> | 35mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 143mm |
| L<sub>1</sub> | 75mm |
| B<sub>1</sub> | 66.6mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 5.8 kg |
