SKU: UELP309-111D1W3-NTN

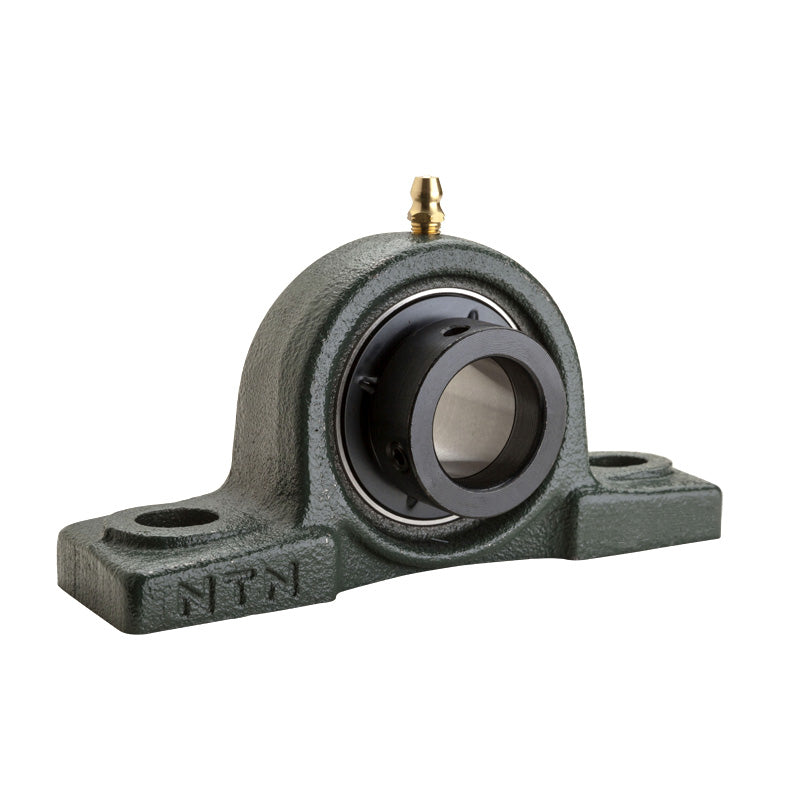

NTN UELP309-111D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP309-111D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 17,023.94
Regular price
Sale price
Rs. 17,023.94
Taxes included.
In stock
Price Break
5+
Rs. 16,853.70
10+
Rs. 16,172.74
20+
Rs. 15,832.26
50+
Rs. 15,321.55
100+
Rs. 14,981.07
500+
Rs. 14,129.87
1000+
Rs. 11,916.76
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UELP
- Bolt Hole Centres:
- 7-15/32 inch
Technical
Technical
| Shaft diameter | 1-11/16 inch |
|---|---|
| H | 2-41/64 inch |
| L | 9-21/32 inch |
| J | 7-15/32 inch |
| A | 2-5/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 1-3/16 inch |
| H<sub>1</sub> | 15/16 inch |
| H<sub>2</sub> | 5-3/32 inch |
| L<sub>1</sub> | 2-9/16 inch |
| B<sub>1</sub> | 2.311 inch |
| S | 0.78 inch |
| Fixing bolt | 5/8 inch |
| Mass | 9.3 lbs |
