SKU: UELP209-112D1W3-NTN

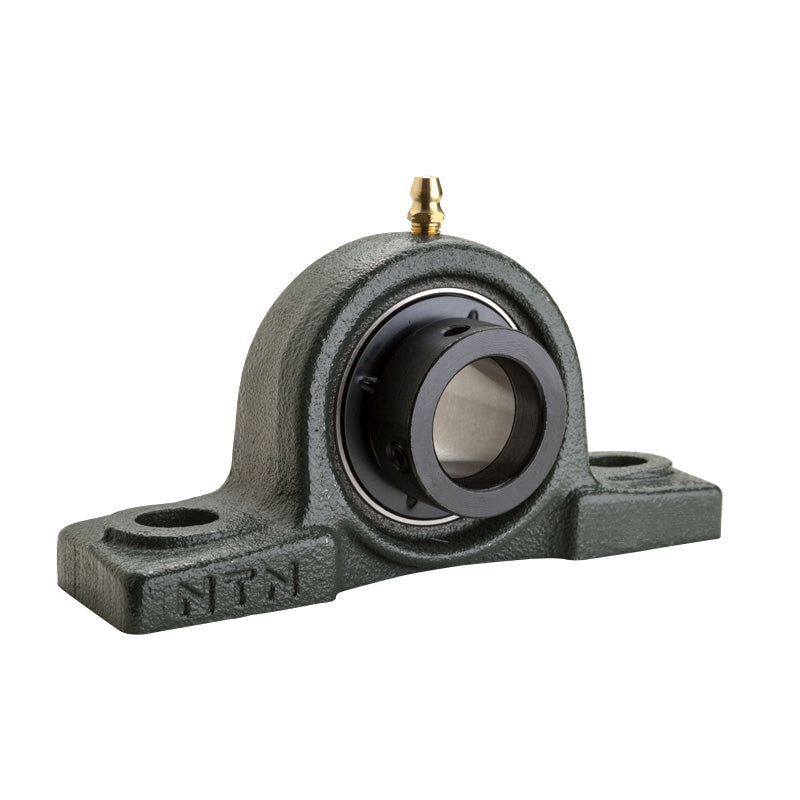

NTN UELP209-112D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP209-112D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 9,924.01
Regular price
Sale price
Rs. 9,924.01
Taxes included.
In stock
Price Break
5+
Rs. 9,824.77
10+
Rs. 9,427.81
20+
Rs. 9,229.33
50+
Rs. 8,931.61
100+
Rs. 8,733.13
500+
Rs. 8,236.93
1000+
Rs. 6,946.81
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UELP
- Bolt Hole Centres:
- 5-3/4 inch
Technical
Technical
| Shaft diameter | 1-3/4 inch |
|---|---|
| H | 2-1/8 inch |
| L | 7-15/32 inch |
| J | 5-3/4 inch |
| A | 2-1/8 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 25/32 inch |
| H<sub>2</sub> | 4-3/16 inch |
| L<sub>1</sub> | 2-3/8 inch |
| B<sub>1</sub> | 2.217 inch |
| S | 0.843 inch |
| Fixing bolt | 1/2 inch |
| Mass | 5.1 lbs |
