SKU: UELF212D1W3-NTN

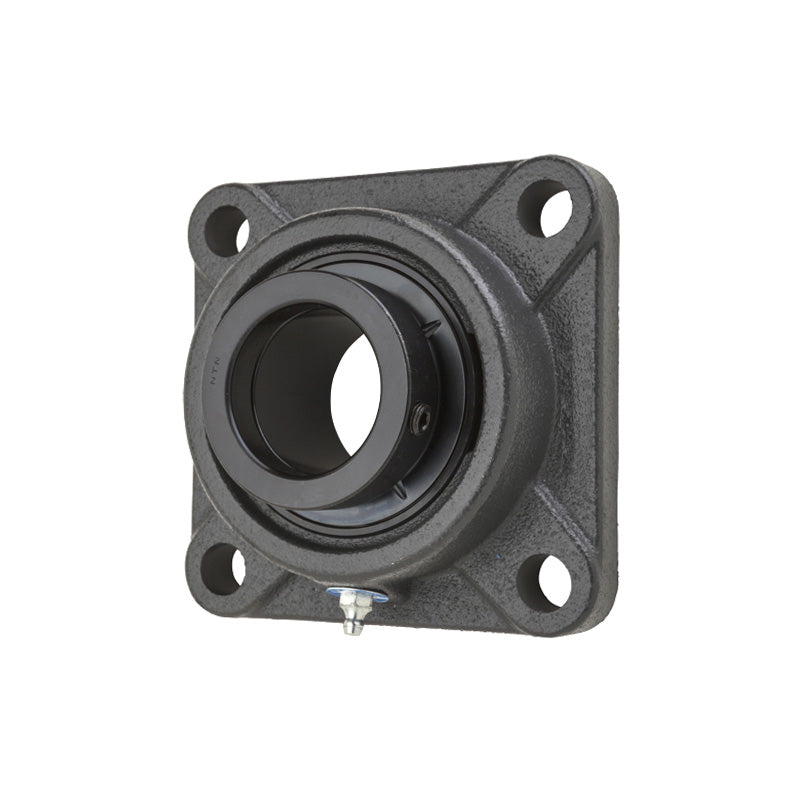

NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 10,506.50
Regular price
Sale price
Rs. 10,506.50
Taxes included.
In stock
Price Break
10+
Rs. 9,350.79
19+
Rs. 8,825.46
29+
Rs. 8,720.40
39+
Rs. 8,615.33
49+
Rs. 8,510.27
74+
Rs. 8,405.20
99+
Rs. 7,879.88
199+
Rs. 7,774.81
249+
Rs. 7,669.75
499+
Rs. 7,564.68
999+
Rs. 7,354.55
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| L | 175mm |
| J | 143mm |
| A<sub>2</sub> | 29mm |
| A<sub>1</sub> | 18mm |
| A | 48mm |
| N | 19mm |
| A<sub>0</sub> | 75.85mm |
| B<sub>1</sub> | 77.8mm |
| S | 30.95mm |
| F min. | 81mm |
| Fixing bolt | M16 |
| Mass | 4.2 kg |
