SKU: UELF211D1W3-NTN

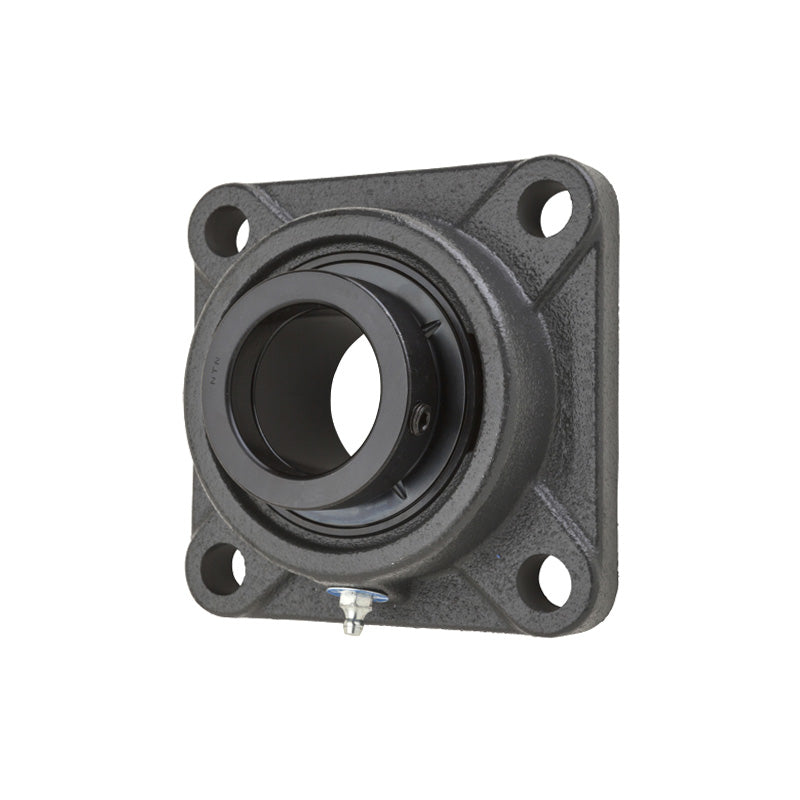

NTN UELF211D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF211D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 11,345.02
Regular price
Sale price
Rs. 11,345.02
Taxes included.
In stock
Price Break
5+
Rs. 11,231.57
10+
Rs. 10,777.77
20+
Rs. 10,550.87
50+
Rs. 10,210.52
100+
Rs. 9,983.62
500+
Rs. 9,416.37
1000+
Rs. 7,941.51
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UELF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| L | 162mm |
| J | 130mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 43mm |
| N | 19mm |
| A<sub>0</sub> | 68.65mm |
| B<sub>1</sub> | 71.4mm |
| S | 27.75mm |
| F min. | 73mm |
| Fixing bolt | M16 |
| Mass | 3.6 kg |
