SKU: UCX.20

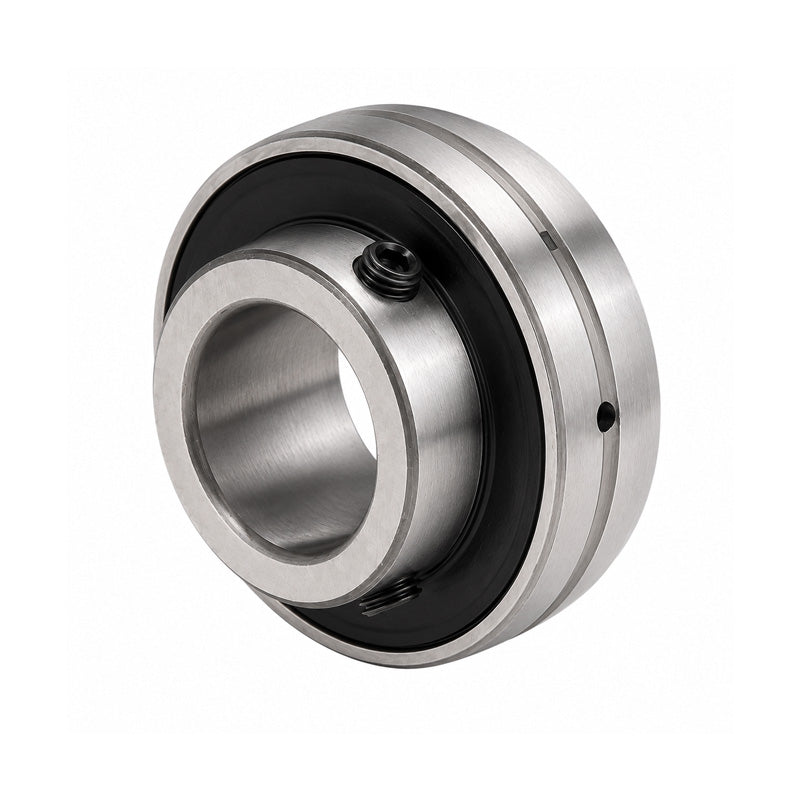

UCX20 Metric Bearing Insert with 100mm Bore 190mm Outside Dia
UCX20 Metric Bearing Insert with 100mm Bore 190mm Outside Dia
Regular price
Rs. 12,849.24
Regular price
Sale price
Rs. 12,849.24
Taxes included.
In stock
Price Break
10+
Rs. 11,435.82
19+
Rs. 10,793.36
29+
Rs. 10,664.87
39+
Rs. 10,536.38
49+
Rs. 10,407.88
74+
Rs. 10,279.39
99+
Rs. 9,636.93
199+
Rs. 9,508.44
249+
Rs. 9,379.95
499+
Rs. 9,251.45
999+
Rs. 8,994.47
Description
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 190mm
- Style:
- UCX
Technical
Technical
| d | 100mm |
|---|---|
| D | 190mm |
| Bi | 117.5mm |
| Be | 43mm |
| n | 49.2mm |
| m | 68.3mm |
| G | 18mm |
| Grub screw | M14x1.5 |
| Weight | 8.56 kg |
| Dynamic load | 13300 kgf |
| Static load | 10500 kgf |
