SKU: UCX.13-40.TS.CHAL

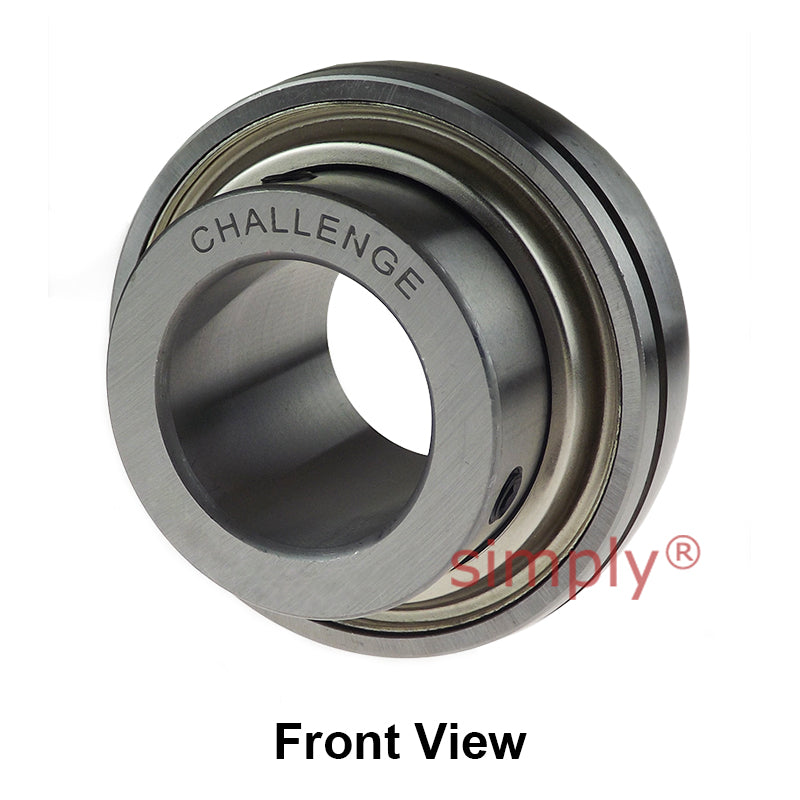

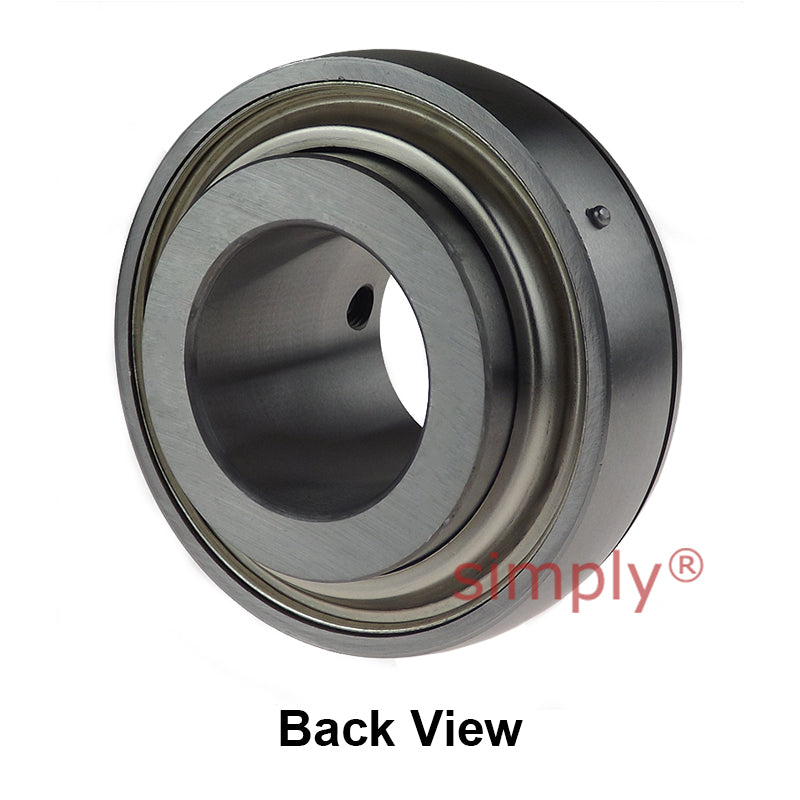

Challenge UCX13-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX13-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 16,577.15
Regular price
Sale price
Rs. 16,577.15
Taxes included.
Equivalent to: UCX.13-40
In stock
Price Break
10+
Rs. 14,753.66
19+
Rs. 13,924.81
29+
Rs. 13,759.03
39+
Rs. 13,593.26
49+
Rs. 13,427.49
74+
Rs. 13,261.72
99+
Rs. 12,432.86
199+
Rs. 12,267.09
249+
Rs. 12,101.32
499+
Rs. 11,935.55
999+
Rs. 11,604.01
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.13-40
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 2-1/2 inch |
|---|---|
| Outside Diameter D | 125mm |
| Overall Width Bi | 74.6mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 30.2mm |
| Front of Bearing to Centre Line m | 44.4mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4870kg |
| Load Rating (Static) | 3810kg |
| Max Speed | 1400 rev/min |
| Working Temperature | -30°C to +120°C |
