SKU: UCX.06-20.TS.CHAL

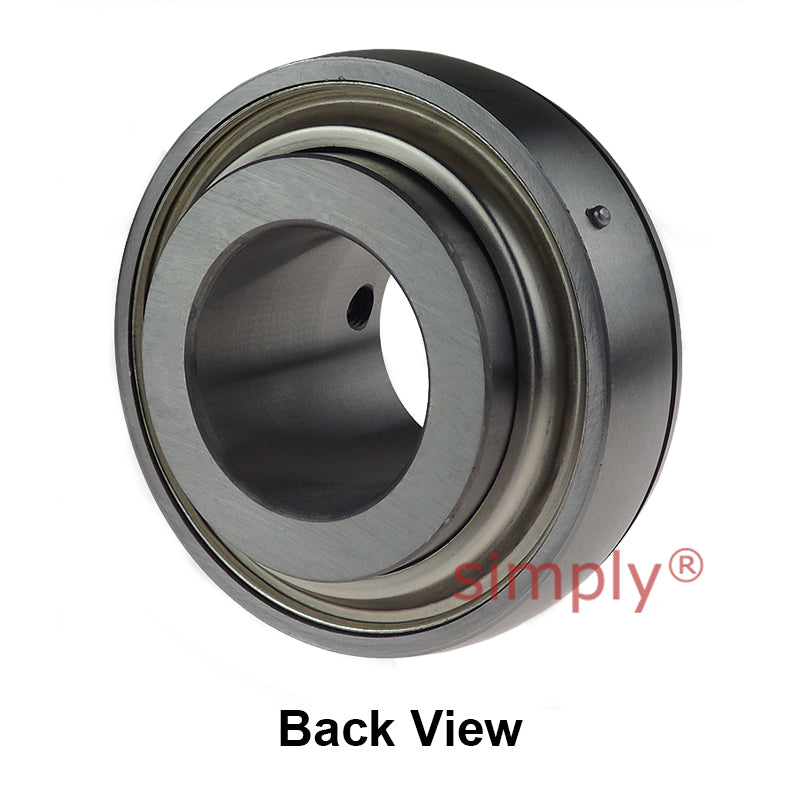

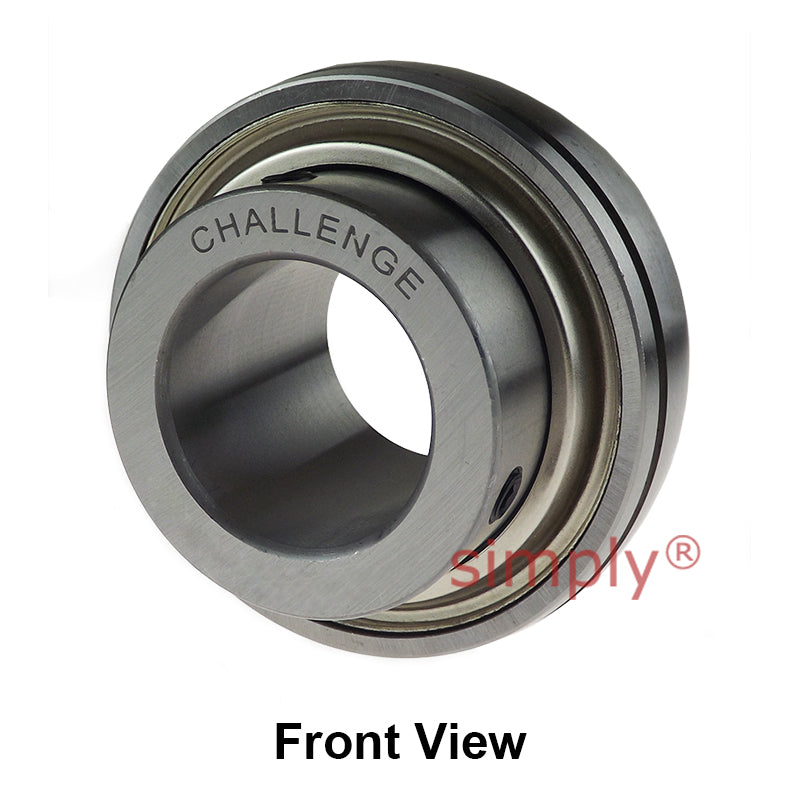

Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 4,780.22
Regular price
Sale price
Rs. 4,780.22
Taxes included.
Equivalent to: UCX.06-20
In stock
Price Break
10+
Rs. 4,254.40
19+
Rs. 4,015.38
29+
Rs. 3,967.58
39+
Rs. 3,919.78
49+
Rs. 3,871.98
74+
Rs. 3,824.18
99+
Rs. 3,585.17
199+
Rs. 3,537.36
249+
Rs. 3,489.56
499+
Rs. 3,441.76
999+
Rs. 3,346.15
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.06-20
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 72mm |
| Overall Width Bi | 42.9mm |
| Inner Race Width Be | 20mm |
| Back of Bearing to Centre Line n | 17.5mm |
| Front of Bearing to Centre Line m | 25.4mm |
| Dimension G | 6.5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 2010kg |
| Load Rating (Static) | 1390kg |
| Max Speed | 2800 rev/min |
| Working Temperature | -30°C to +120°C |
