• UCW202-9 Imperial Bearing Insert with 9/16 inch Bore 40mm Outside Dia
1 1

SKU: UCW.202-9

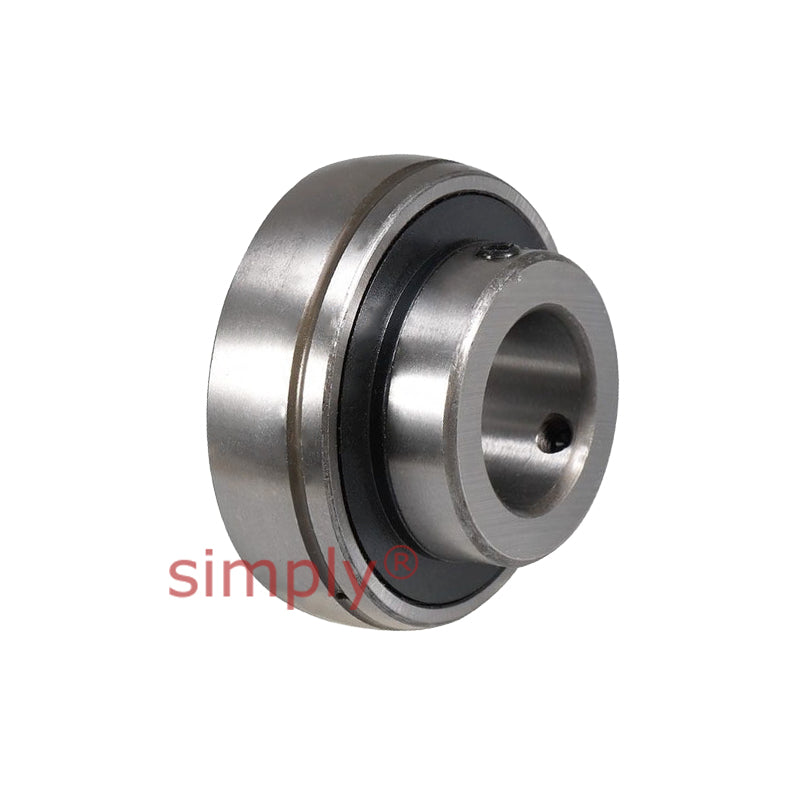

UCW202-9 Imperial Bearing Insert with 9/16 inch Bore 40mm Outside Dia

UCW202-9 Imperial Bearing Insert with 9/16 inch Bore 40mm Outside Dia
Rs. 2,594.94
Rs. 2,594.94
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,309.50
19+ Rs. 2,179.75
29+ Rs. 2,153.80
39+ Rs. 2,127.85
49+ Rs. 2,101.90
74+ Rs. 2,075.95
99+ Rs. 1,946.21
199+ Rs. 1,920.26
249+ Rs. 1,894.31
499+ Rs. 1,868.36
999+ Rs. 1,816.46
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
14.29mm = 0.563 (9/16) inch
Outside Diameter:
40mm
Style:
UCW
Technical
d 9/16 inch
D 40mm
Bi 27.4mm
Be 14mm
n 11.5mm
m 15.9mm
G 4.2mm
Grub screw 10-32 UNF
Weight 0.11 kg
Dynamic load 973 kgf
Static load 487 kgf
