SKU: UCW.202-10

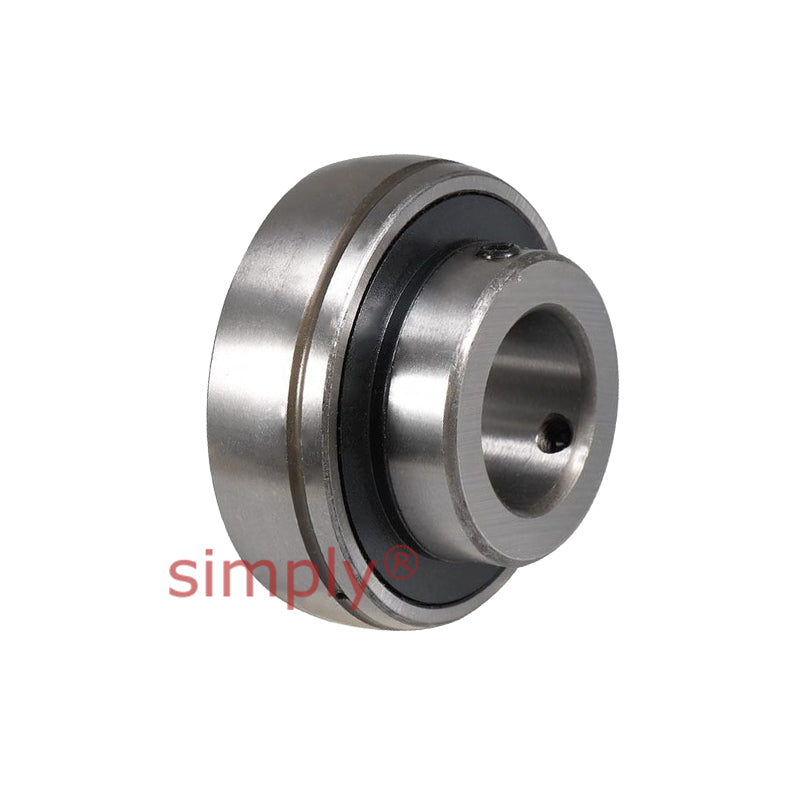

UCW202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
UCW202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
Rs. 1,172.68
ex VAT
Regular price
Sale price
Rs. 1,172.68
ex VAT
In stock
Price Break
10+
Rs. 1,043.69
19+
Rs. 985.05
29+
Rs. 973.32
39+
Rs. 961.60
49+
Rs. 949.87
74+
Rs. 938.14
99+
Rs. 879.51
199+
Rs. 867.78
249+
Rs. 856.06
499+
Rs. 844.33
999+
Rs. 820.88
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- UCW
- Type:
- Spherical Outer
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | 10-32 UNF |
| Weight | 0.106 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
