SKU: UCW.202

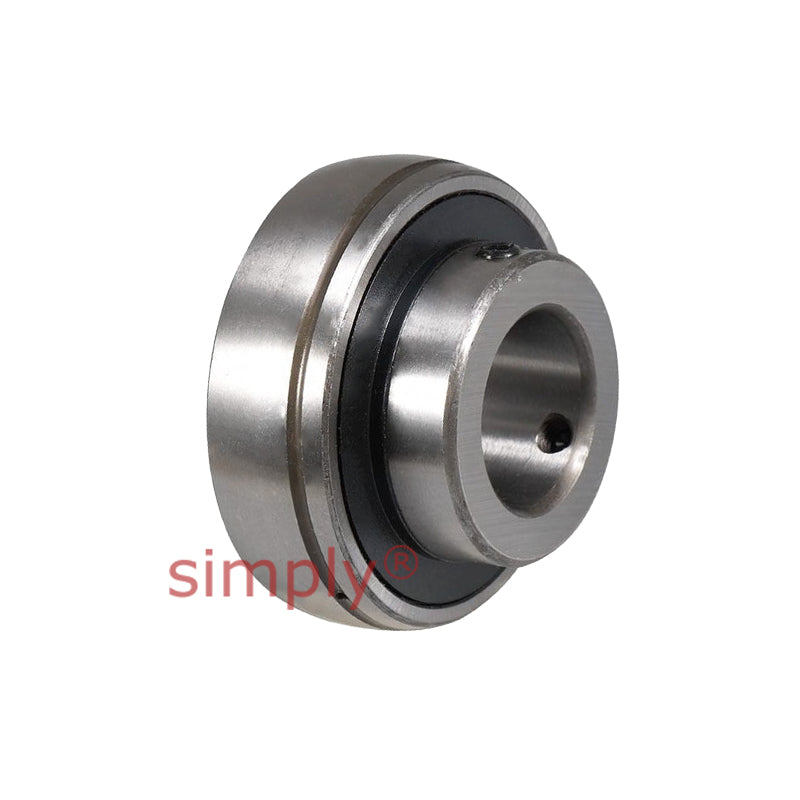

UCW202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
UCW202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
Regular price
Rs. 1,159.85
Regular price
Sale price
Rs. 1,159.85
Taxes included.
In stock
Price Break
10+
Rs. 1,032.27
19+
Rs. 974.27
29+
Rs. 962.68
39+
Rs. 951.08
49+
Rs. 939.48
74+
Rs. 927.88
99+
Rs. 869.89
199+
Rs. 858.29
249+
Rs. 846.69
499+
Rs. 835.09
999+
Rs. 811.90
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 15mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | M5x0.8 |
| Weight | 0.11 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
