SKU: UCTX16D1-NTN

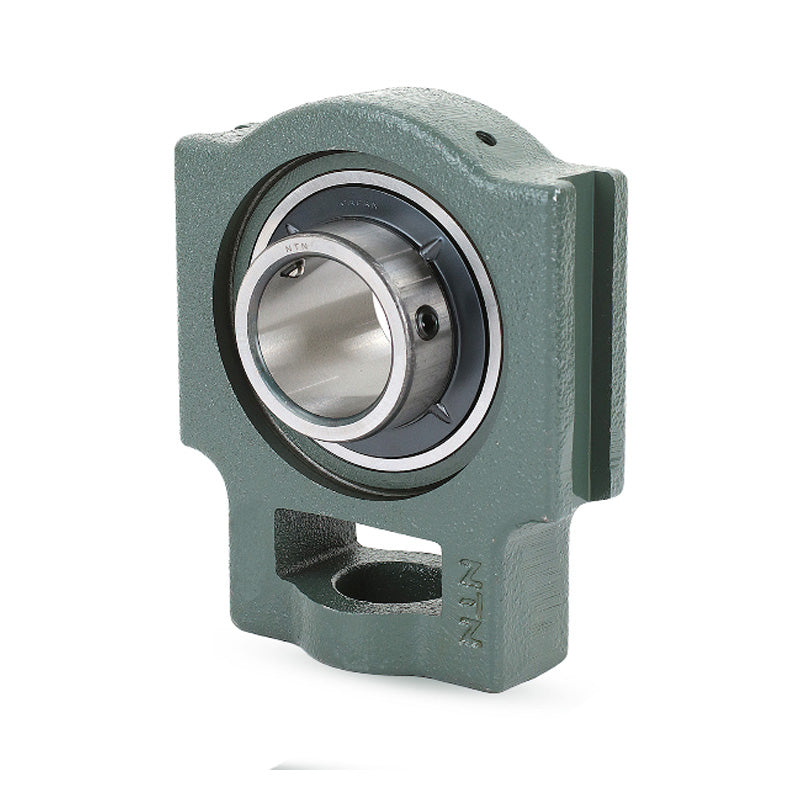

NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
Regular price
Rs. 28,872.07
Regular price
Sale price
Rs. 28,872.07
Taxes included.
In stock
Price Break
10+
Rs. 25,696.14
19+
Rs. 24,252.54
29+
Rs. 23,963.82
39+
Rs. 23,675.10
49+
Rs. 23,386.38
74+
Rs. 23,097.66
99+
Rs. 21,654.05
199+
Rs. 21,365.33
249+
Rs. 21,076.61
499+
Rs. 20,787.89
999+
Rs. 20,210.45
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| N<sub>1</sub> | 38mm |
| L<sub>2</sub> | 30mm |
| H<sub>2</sub> | 124mm |
| N<sub>2</sub> | 73mm |
| N | 48mm |
| L<sub>3</sub> | 157mm |
| A<sub>1</sub> | 28mm |
| H<sub>1</sub> | 173mm |
| H | 198mm |
| L | 260mm |
| A<sub>2</sub> | 54mm |
| A | 73mm |
| r | 98mm |
| L<sub>1</sub> | 162mm |
| B | 85.7mm |
| S | 34.1mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 11 kg |
