SKU: UCTX10D1-NTN

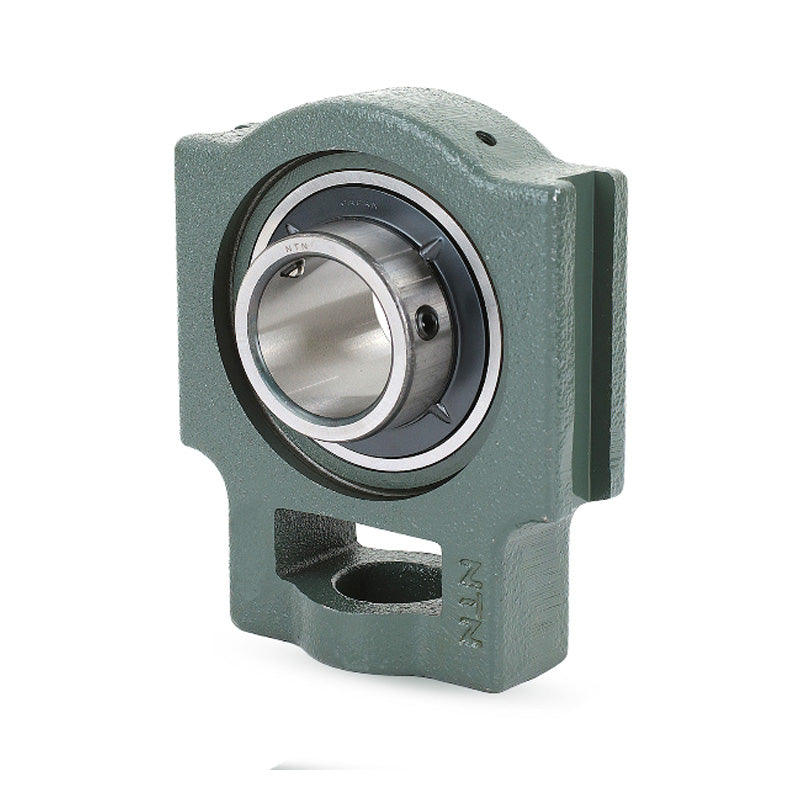

NTN UCTX10D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
NTN UCTX10D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
Regular price
Rs. 11,342.46
Regular price
Sale price
Rs. 11,342.46
Taxes included.
In stock
Price Break
5+
Rs. 11,229.04
10+
Rs. 10,775.34
20+
Rs. 10,548.49
50+
Rs. 10,208.21
100+
Rs. 9,981.36
500+
Rs. 9,414.24
1000+
Rs. 7,939.72
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| N<sub>1</sub> | 25mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 95mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 171mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 65mm |
| L<sub>1</sub> | 106mm |
| B | 55.6mm |
| S | 22.2mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 4.2 kg |
