SKU: UCT314D1-NTN

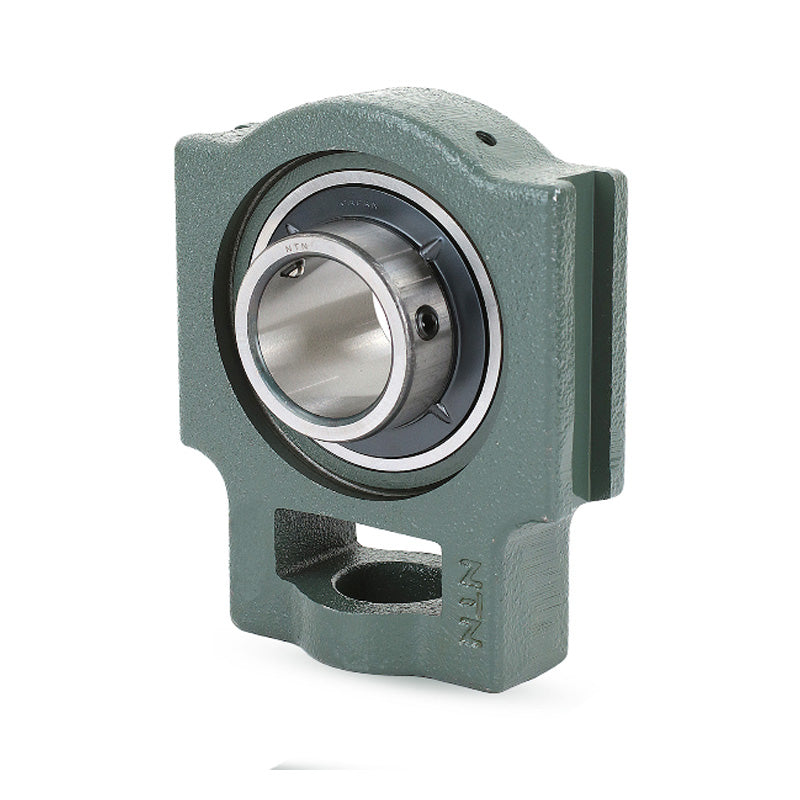

NTN UCT314D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT314D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit - Allow 2-3 Days
Regular price
Rs. 31,210.98
Regular price
Sale price
Rs. 31,210.98
Taxes included.
In stock
Price Break
5+
Rs. 30,898.87
10+
Rs. 29,650.43
20+
Rs. 29,026.21
50+
Rs. 28,089.88
100+
Rs. 27,465.66
500+
Rs. 25,905.11
1000+
Rs. 21,847.69
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| N<sub>1</sub> | 36mm |
| L<sub>2</sub> | 27mm |
| H<sub>2</sub> | 130mm |
| N<sub>2</sub> | 85mm |
| N | 46mm |
| L<sub>3</sub> | 140mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 180mm |
| H | 202mm |
| L | 252mm |
| A<sub>2</sub> | 52mm |
| A | 90mm |
| r | 97mm |
| L<sub>1</sub> | 155mm |
| B | 78mm |
| S | 33mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 115 kN |
| Static load C<sub>0r</sub> | 68 kN |
| Fatigue load limit C<sub>u</sub> | 5.1 kN |
| --- | Unit information |
| Mass | 11 kg |
