SKU: UCT309D1-NTN

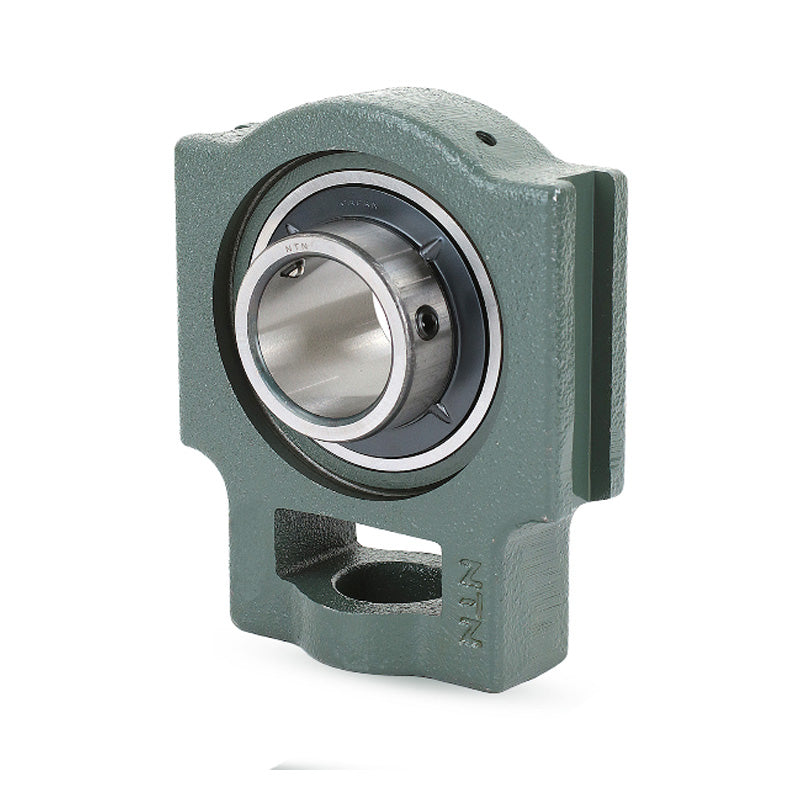

NTN UCT309D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT309D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
Regular price
Rs. 12,773.71
Regular price
Sale price
Rs. 12,773.71
Taxes included.
In stock
Price Break
5+
Rs. 12,645.97
10+
Rs. 12,135.02
20+
Rs. 11,879.55
50+
Rs. 11,496.34
100+
Rs. 11,240.86
500+
Rs. 10,602.18
1000+
Rs. 8,941.60
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| N<sub>1</sub> | 24mm |
| L<sub>2</sub> | 20mm |
| H<sub>2</sub> | 90mm |
| N<sub>2</sub> | 55mm |
| N | 34mm |
| L<sub>3</sub> | 97mm |
| A<sub>1</sub> | 18mm |
| H<sub>1</sub> | 125mm |
| H | 138mm |
| L | 178mm |
| A<sub>2</sub> | 38mm |
| A | 55mm |
| r | 68mm |
| L<sub>1</sub> | 110mm |
| B | 57mm |
| S | 22mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58.5 kN |
| Static load C<sub>0r</sub> | 32 kN |
| Fatigue load limit C<sub>u</sub> | 2.5 kN |
| --- | Unit information |
| Mass | 4 kg |
