SKU: UCT307

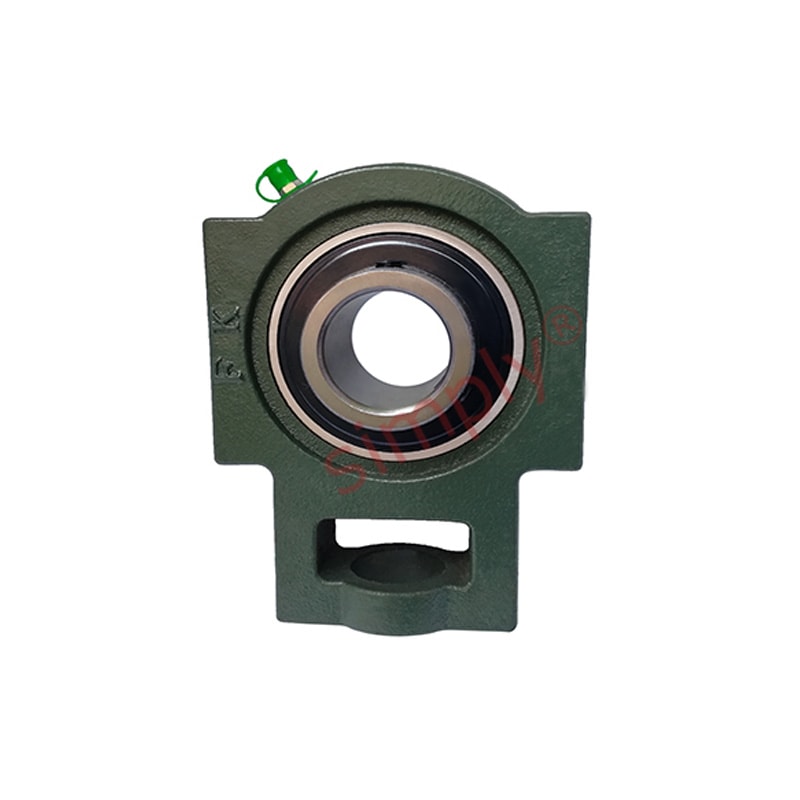

UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
Regular price
Rs. 3,420.66
Regular price
Sale price
Rs. 3,420.66
Taxes included.
In stock
Price Break
10+
Rs. 3,044.39
19+
Rs. 2,873.35
29+
Rs. 2,839.15
39+
Rs. 2,804.94
49+
Rs. 2,770.73
74+
Rs. 2,736.53
99+
Rs. 2,565.50
199+
Rs. 2,531.29
249+
Rs. 2,497.08
499+
Rs. 2,462.88
999+
Rs. 2,394.46
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCT
Technical

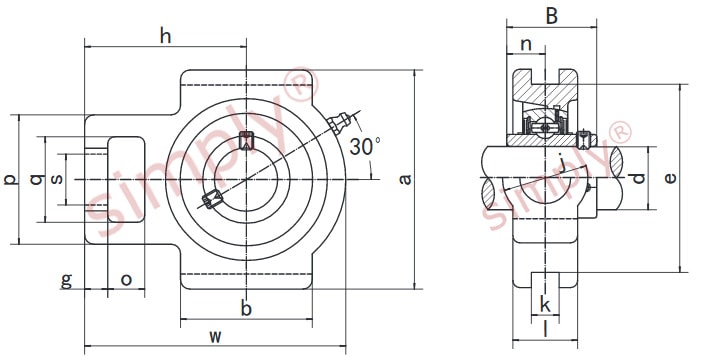

Technical
| d | 35mm |
|---|---|
| o | 20mm |
| g | 17mm |
| p | 75mm |
| q | 45mm |
| s | 30mm |
| b | 80mm |
| k | 16mm |
| e | 100mm |
| a | 111mm |
| w | 150mm |
| j | 45mm |
| l | 32mm |
| h | 94mm |
| B | 48mm |
| n | 19mm |
| Bearing no | UC307 |
| Housing no | T307 |
| Weight | 2.3 kg |
