SKU: UCPX08D1-NTN

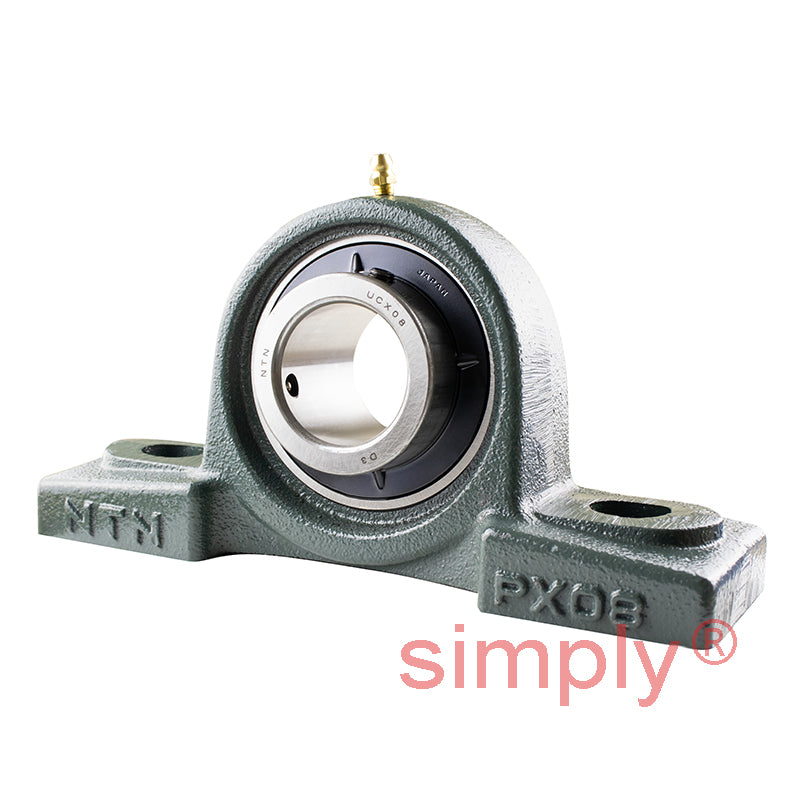

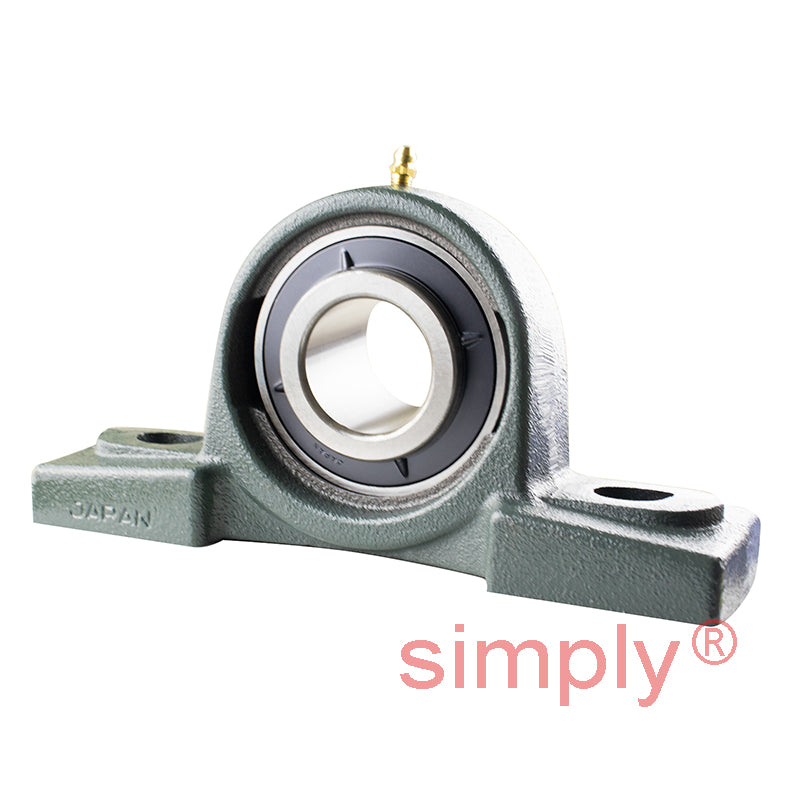

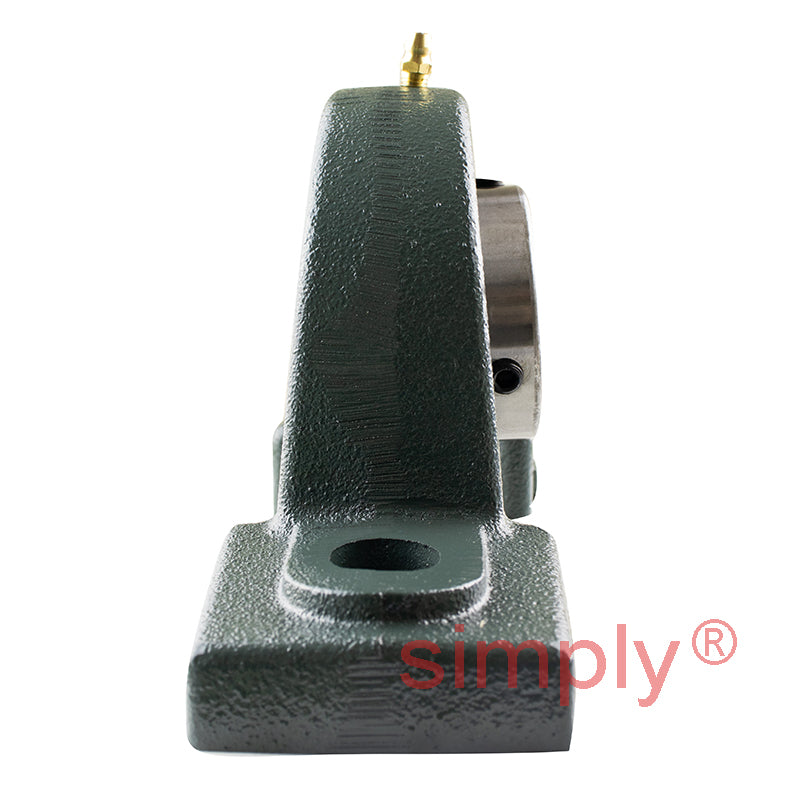

NTN UCPX08D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
NTN UCPX08D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
Regular price
Rs. 5,338.38
Regular price
Sale price
Rs. 5,338.38
Taxes included.
In stock
Price Break
10+
Rs. 4,751.16
19+
Rs. 4,484.24
29+
Rs. 4,430.86
39+
Rs. 4,377.47
49+
Rs. 4,324.09
74+
Rs. 4,270.70
99+
Rs. 4,003.79
199+
Rs. 3,950.40
249+
Rs. 3,897.02
499+
Rs. 3,843.63
999+
Rs. 3,736.87
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPX
- Bolt Hole Centres:
- 156mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 58.7mm |
| L | 222mm |
| J | 156mm |
| A | 67mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 26mm |
| H<sub>2</sub> | 111mm |
| L<sub>1</sub> | 65mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.9 kg |
