SKU: UCPX.15-48.TS.CHAL

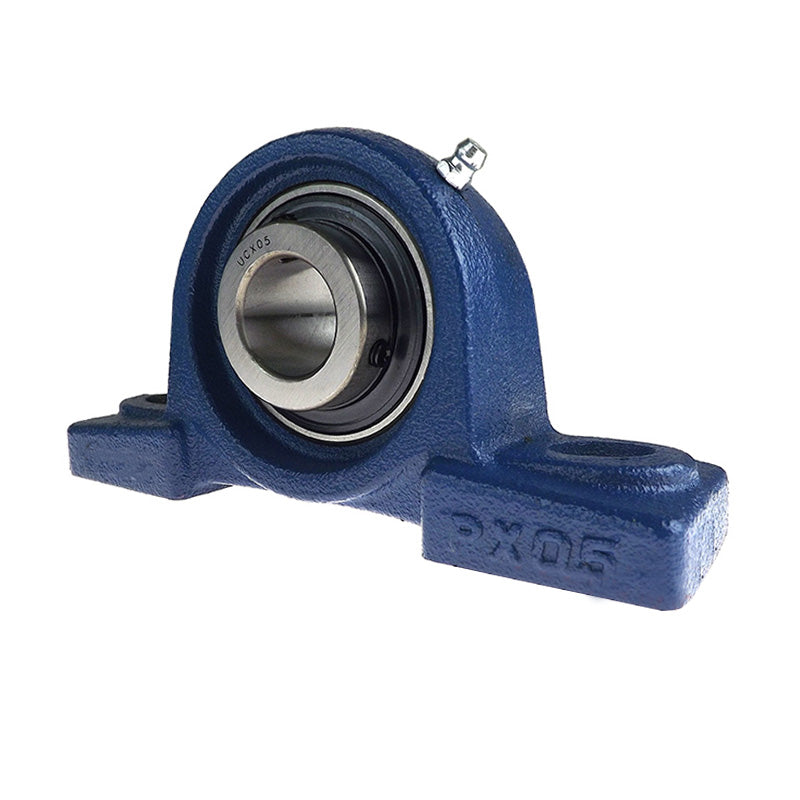

Challenge / FK UCPX15-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCPX15-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 46,826.70
Regular price
Sale price
Rs. 46,826.70
Taxes included.
Equivalent to: UCPX.15-48
In stock
Price Break
10+
Rs. 41,675.76
19+
Rs. 39,334.43
29+
Rs. 38,866.16
39+
Rs. 38,397.89
49+
Rs. 37,929.63
74+
Rs. 37,461.36
99+
Rs. 35,120.03
199+
Rs. 34,651.76
249+
Rs. 34,183.49
499+
Rs. 33,715.22
999+
Rs. 32,778.69
Description
Description
UCPX Cast Iron Two Bolt Pillow Block Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCPX.15-48
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCPX
- Bolt Hole Centres:
- 229mm
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Casting Centre Line Height h | 88.9mm |
| Casting Length a | 330mm |
| Recommended Bolt Centres l | 229mm |
| Casting Width b | 89mm |
| Slot Length s<sub>2</sub> | 50mm |
| Slot Width s<sub>1</sub> | 27mm |
| Foot Height g | 35mm |
| Overall Height w | 175mm |
| Bearing Insert Width Bi | 82.6mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Bolt Size | 7/8 inch |
| Grub Screws x 2 | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1200 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX15-48 |
| Housing No | PX15 |
