SKU: UCPX.10-32.TS.CHAL

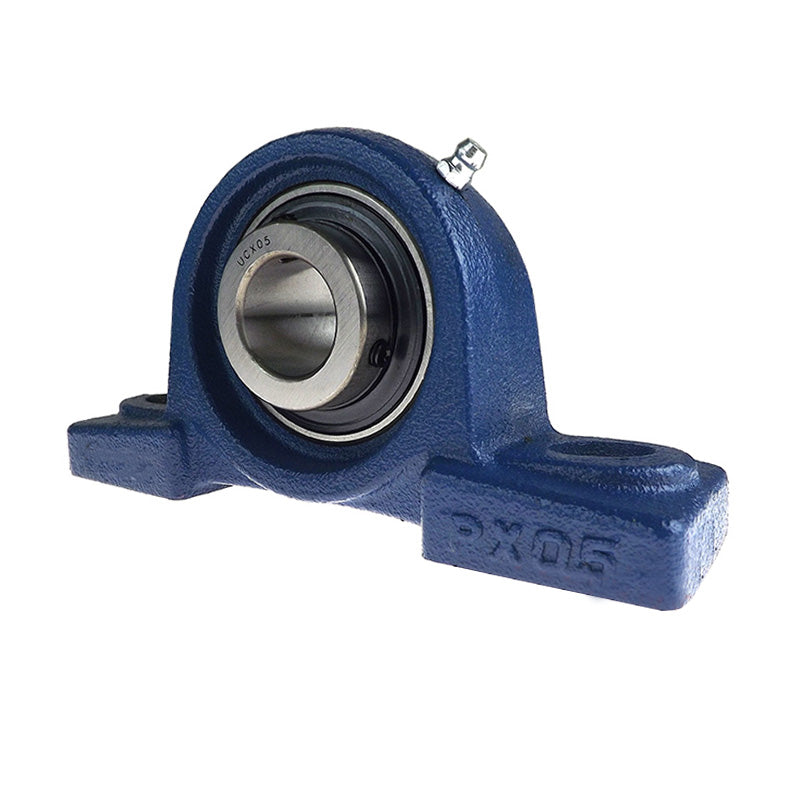

Challenge / FK UCPX10-32 Imperial Cast Iron Two Bolt Pillow Block Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCPX10-32 Imperial Cast Iron Two Bolt Pillow Block Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 13,253.78
Regular price
Sale price
Rs. 13,253.78
Taxes included.
Equivalent to: UCPX.10-32
In stock
Price Break
10+
Rs. 11,795.86
19+
Rs. 11,133.18
29+
Rs. 11,000.64
39+
Rs. 10,868.10
49+
Rs. 10,735.56
74+
Rs. 10,603.02
99+
Rs. 9,940.34
199+
Rs. 9,807.80
249+
Rs. 9,675.26
499+
Rs. 9,542.72
999+
Rs. 9,277.65
Description
Description
UCPX Cast Iron Two Bolt Pillow Block Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCPX.10-32
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCPX
- Bolt Hole Centres:
- 171mm
Technical
Technical
| Shaft Diameter d | 2 inch |
|---|---|
| Casting Centre Line Height h | 63.5mm |
| Casting Length a | 241mm |
| Recommended Bolt Centres l | 171mm |
| Casting Width b | 73mm |
| Slot Length s<sub>2</sub> | 36mm |
| Slot Width s<sub>1</sub> | 20mm |
| Foot Height g | 27mm |
| Overall Height w | 126mm |
| Bearing Insert Width Bi | 55.6mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Bolt Size | 5/8 inch |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1800 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX10-32 |
| Housing No | PX10 |
