SKU: UCPX.07.TS.CHAL
Challenge / FK UCPX07 Metric Cast Iron Two Bolt Pillow Block Housing with 35mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCPX07 Metric Cast Iron Two Bolt Pillow Block Housing with 35mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 7,612.00
Regular price
Sale price
Rs. 7,612.00
Taxes included.
Equivalent to: UCPX.07
In stock
Price Break
10+
Rs. 6,774.68
19+
Rs. 6,394.08
29+
Rs. 6,317.96
39+
Rs. 6,241.84
49+
Rs. 6,165.72
74+
Rs. 6,089.60
99+
Rs. 5,709.00
199+
Rs. 5,632.88
249+
Rs. 5,556.76
499+
Rs. 5,480.64
999+
Rs. 5,328.40
Description
Description
UCPX Cast Iron Two Bolt Pillow Block Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCPX.07
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 35mm
- Style:
- UCPX
- Bolt Hole Centres:
- 144mm

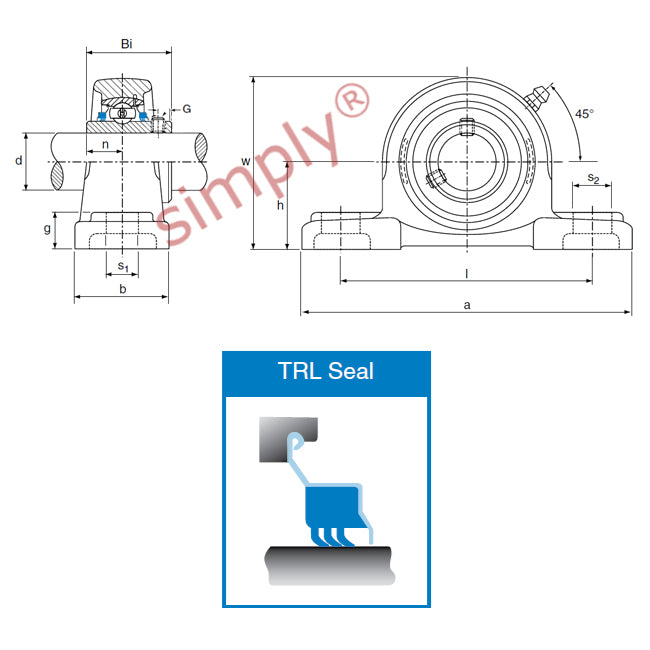

Technical
Technical
| Shaft Diameter d | 35mm |
|---|---|
| Casting Centre Line Height h | 54mm |
| Casting Length a | 203mm |
| Recommended Bolt Centres l | 144mm |
| Casting Width b | 57mm |
| Slot Length s<sub>2</sub> | 30mm |
| Slot Width s<sub>1</sub> | 17mm |
| Foot Height g | 22mm |
| Overall Height w | 105mm |
| Bearing Insert Width Bi | 49.2mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | M14 |
| Grub Screws x 2 | M8x1.0mm |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 2400 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX07 |
| Housing No | PX07 |
